Individual Assignment Part 3: Insights and Conclusion

Vast Challenge 2021 - The Kronos Incident - Mini Challenge 2

Kelly Koh https://www.linkedin.com/in/kellykkw/ (School of Computing and Information Systems, Singapore Management University)https://scis.smu.edu.sg/
07-25-2021

Part 1: Background and Methodology

Part 2: R Packages, Data and Analysis

Part 3: Insights and Conclusion

Insights and Conlusions

Question 1

Using just the credit and loyalty card data, identify the most popular locations, and when they are popular. What anomalies do you see? What corrections would you recommend to correct these anomalies? Please limit your answer to 8 images and 300 words.

The top 3 popular locations belong to the Food categories, such as Katerina’s Cafe, Brew’ve Been Served and Hippokampos. Katerina’s Cafe peaks on Saturday, Hippokampus is busier on weekdays than weekends and Brew’ve been Served is closed on weekends. Figure 1: Daily Spend Transactions Heatmap

Q1 Anomaly - Credit Card Posting at Fixed Hour

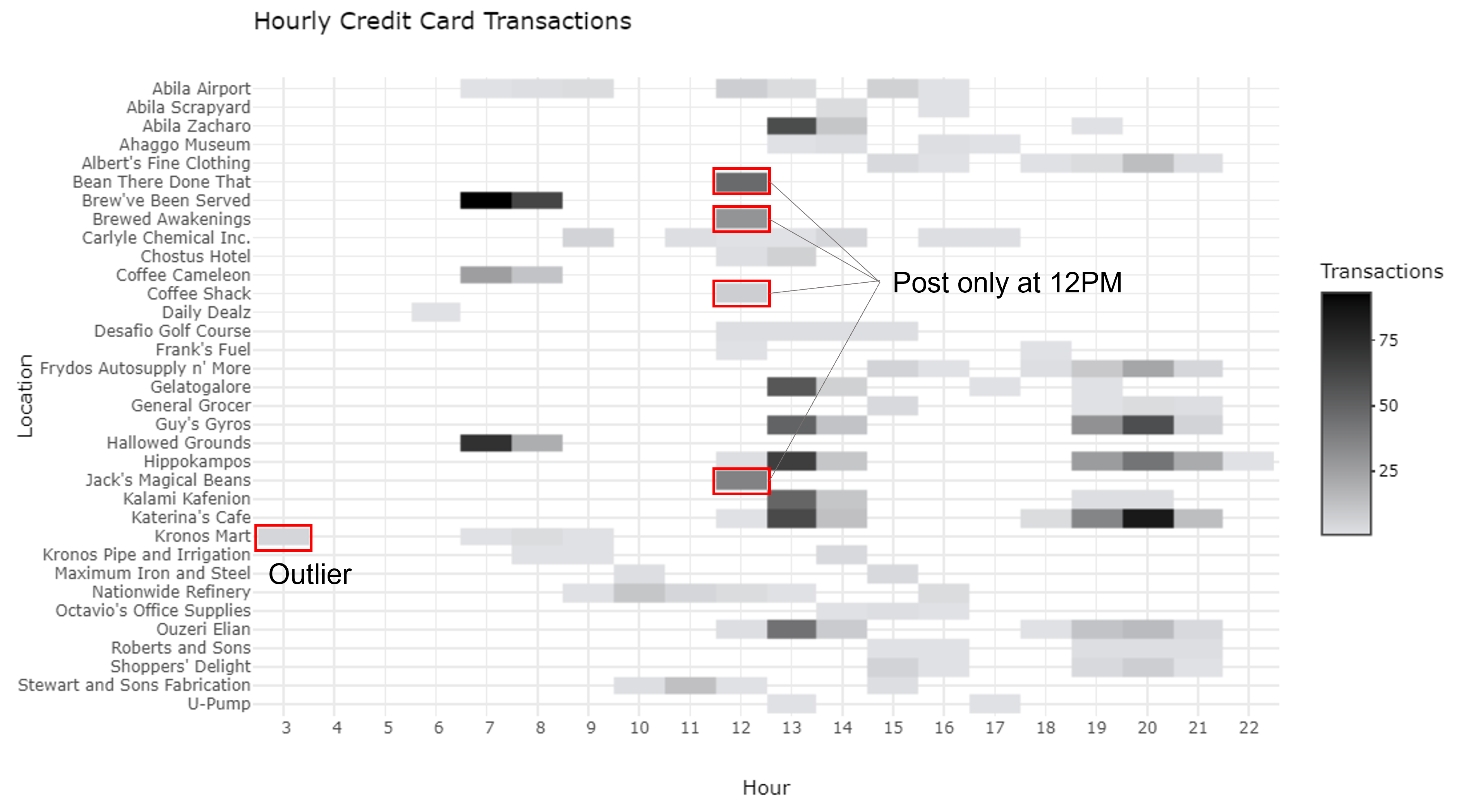

Some locations only have credit card transactions posted in 1 hour within the day e.g. Bean There Done That and Brewed Awakenings, Jack’s Magical Beans, Coffee Shack at 12PM. Corrections: Correct posting timing if GPS record shows otherwise. Figure 2: Hourly Spend Transactions Heatmap

Q1 Anomaly - Kronos Mart Post Credit Card Record 1 Day Late

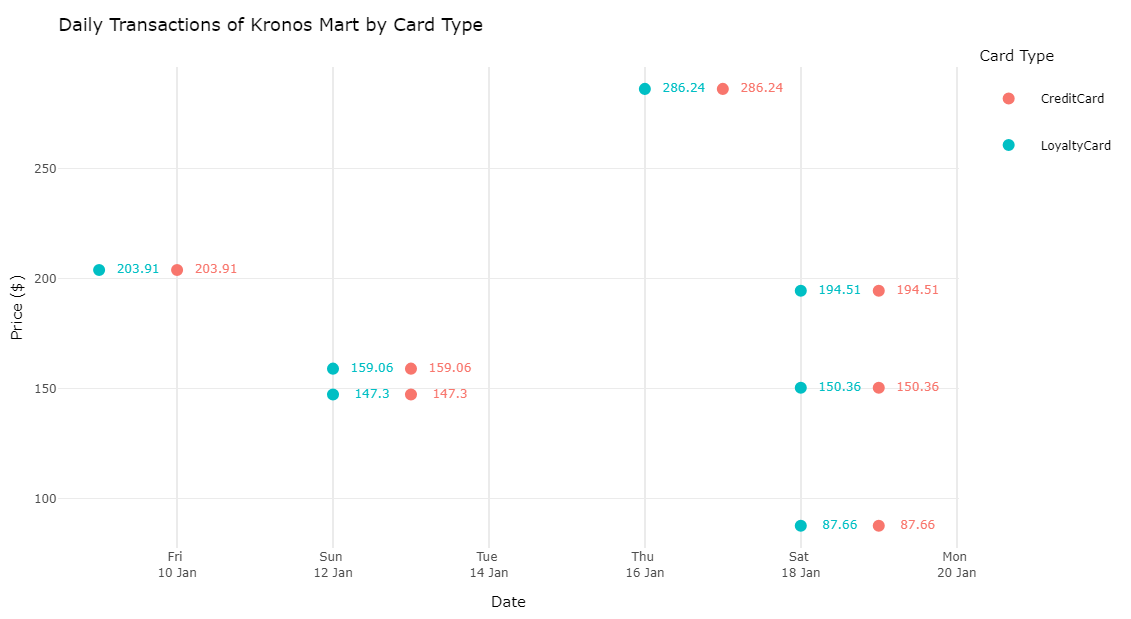

Kronos Mart’s credit card postings usually come 1 day late, which result in strange timing of postings at 3-9AM. Corrections: Correct posting timing based on available GPS record or take the date of loyalty card record. Figure 3: Daily Transactions of Kronos Mart by Card Type

Q1 Anomaly - Cashbacks in Multiples of $20

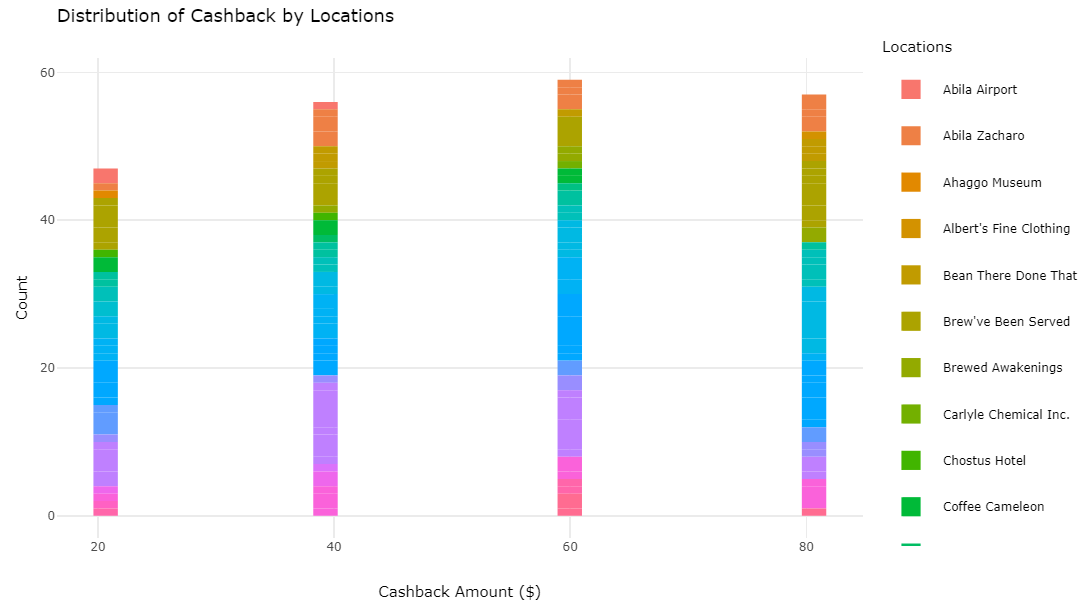

Some loyalty card transactions have prices lower than the corresponding credit card transactions. The denominations are usually in multiples of $20, ranging from $20 to $80. Locations vary widely, suggesting a loyalty cashback scheme. Corrections: Use credit card amount as loyalty price is non-consequential to investigation. Figure 4: Distribution of Cashback Amount by Locations

Q1 Anomaly - Multiple Credit Cards to Loyalty Cards

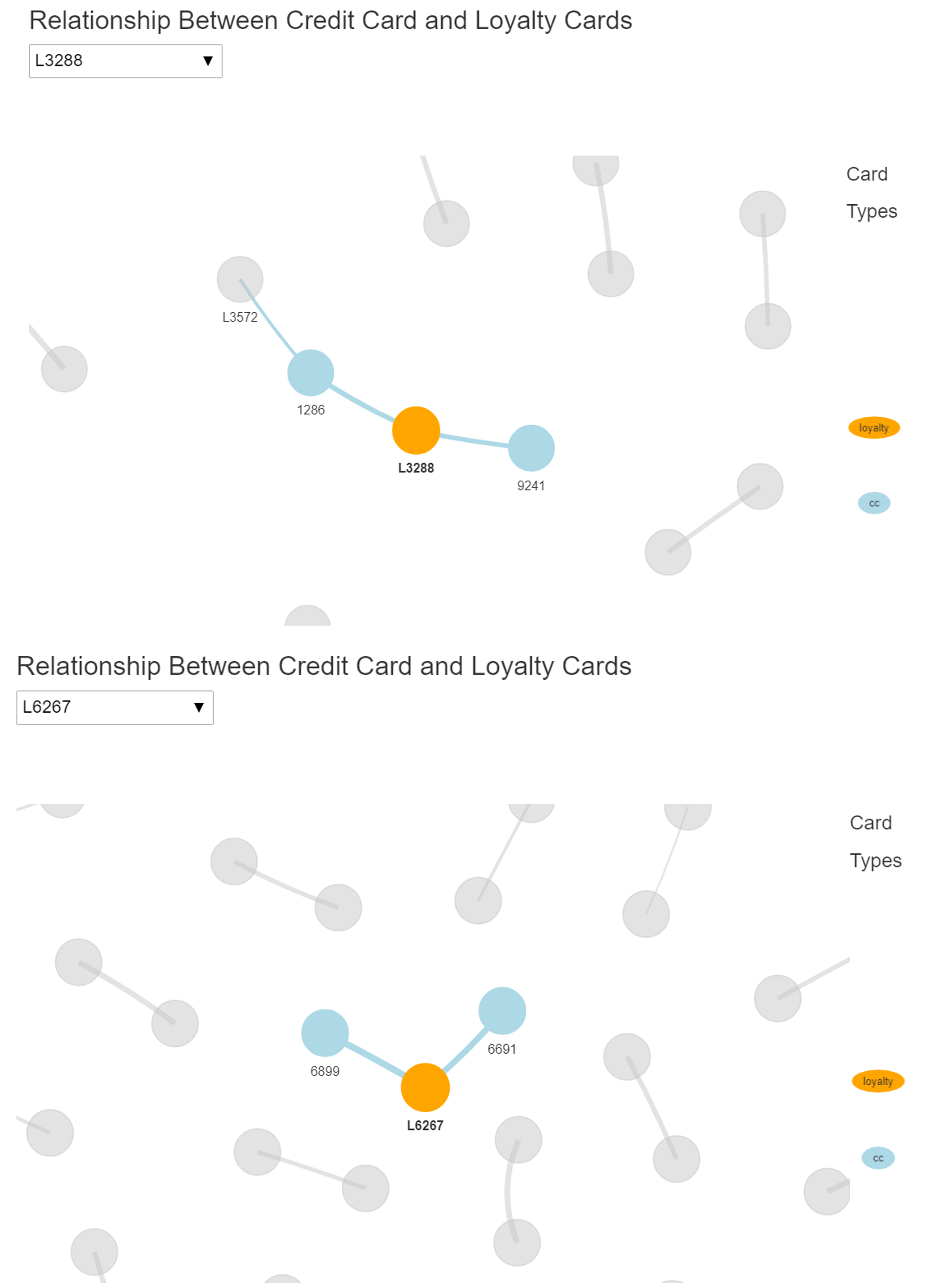

Unexpected relationships between credit card 1286 and loyalty card L3288, and loyalty card L6267 is associated with credit cards 6691 & 6899. Corrections: Care was taken to join credit card and loyalty card transactions to prevent duplication. Figure 5: Network Graph of Credit Card to Loyalty Card Relationships

Q1 Anomaly - High Spend Due to Possible Fraud

Figure 6 shows that the highest spend on the credit card is $10k on Frydos Autosupply n’ More that does not have a loyalty card transaction, belonging to credit card 9551. 9 credit cards (boxed in red) register many high spends that are at industrial areas likely tied to the 9 truck drivers. The other highest spend that is not in industrial location is on Albert’s Fine Clothing by credit card 1321.

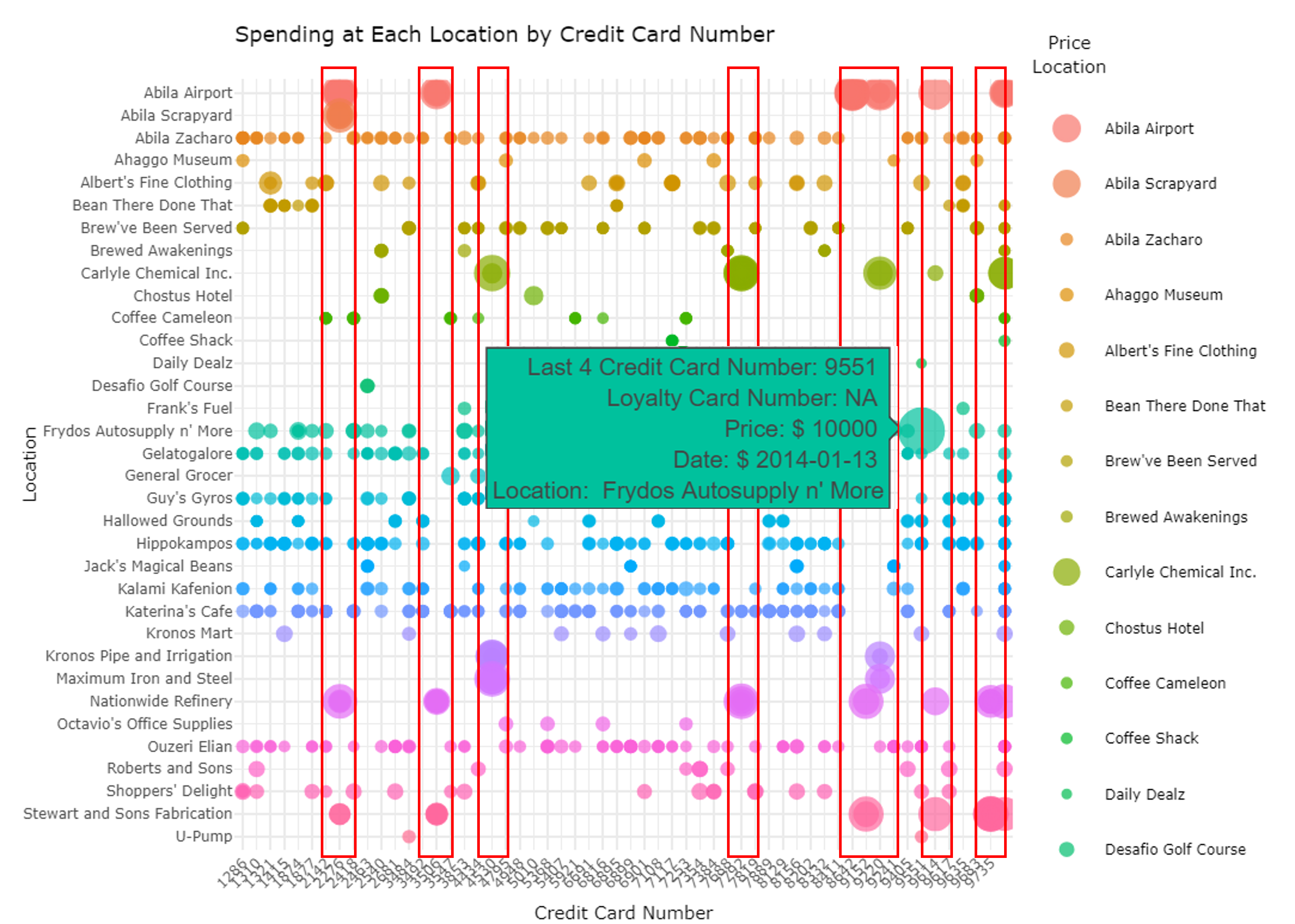

Figure 6: Spending at Each Location by Credit Card Number

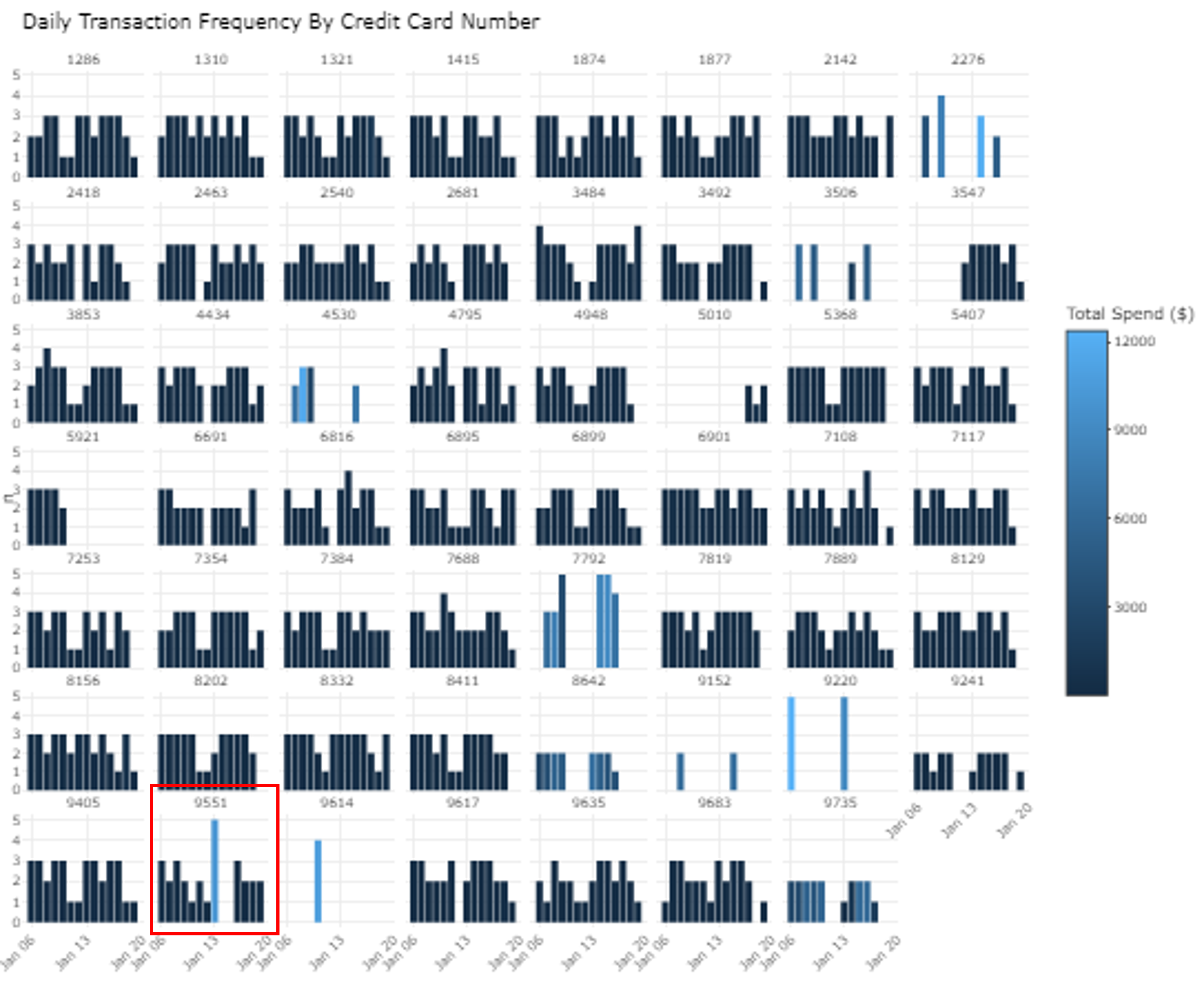

We noticed drom Figure 7 that there is a gap between the the $10k spend on 13 Jan and the next purchase by credit card 9551 on 16 Jan. This suggests that the high spend might be due to fraud. Figure 7: Daily Transaction Frequency by Credit Card Number

Q1 Anomaly - Sparse Spends due to Multiple Cards

From Figure 8. below, we spot anomalies from the frequency of the spends worth investigating:

Figure 8: Daily Transaction Frequency by Credit Card Number

Question 2

Add the vehicle data to your analysis of the credit and loyalty card data. How does your assessment of the anomalies in question 1 change based on this new data? What discrepancies between vehicle, credit, and loyalty card data do you find? Please limit your answer to 8 images and 500 words.

Q2 Anomaly - Confirm Credit Card Posting at Food Outlets at Fixed Hour was Wrong

Bean There Done That, Brewed Awakenings and Jack’s Magic Beans only operate on weekday mornings and posted credit card transactions at 12 noon.

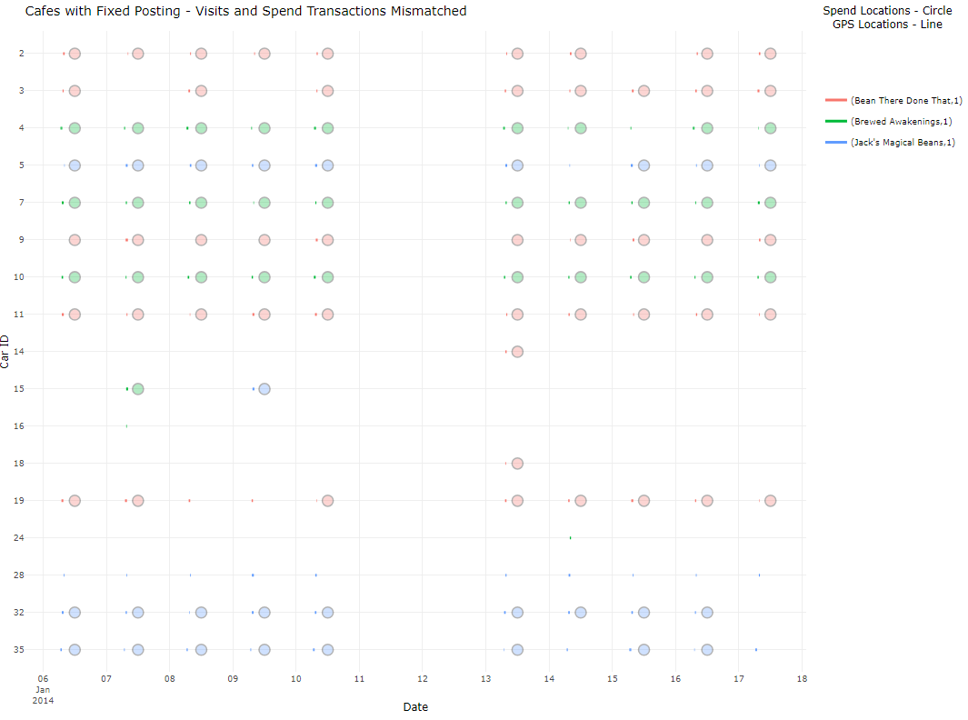

Figure 9: Timeline of Transaction and GPS Event at Food Outlets with 12PM Credit Card Postings

Q2 Anomaly - Confirm Kronos Mart Posting was Wrong

Kronos Mart’s credit card postings were posted around 12 hours after purchase.

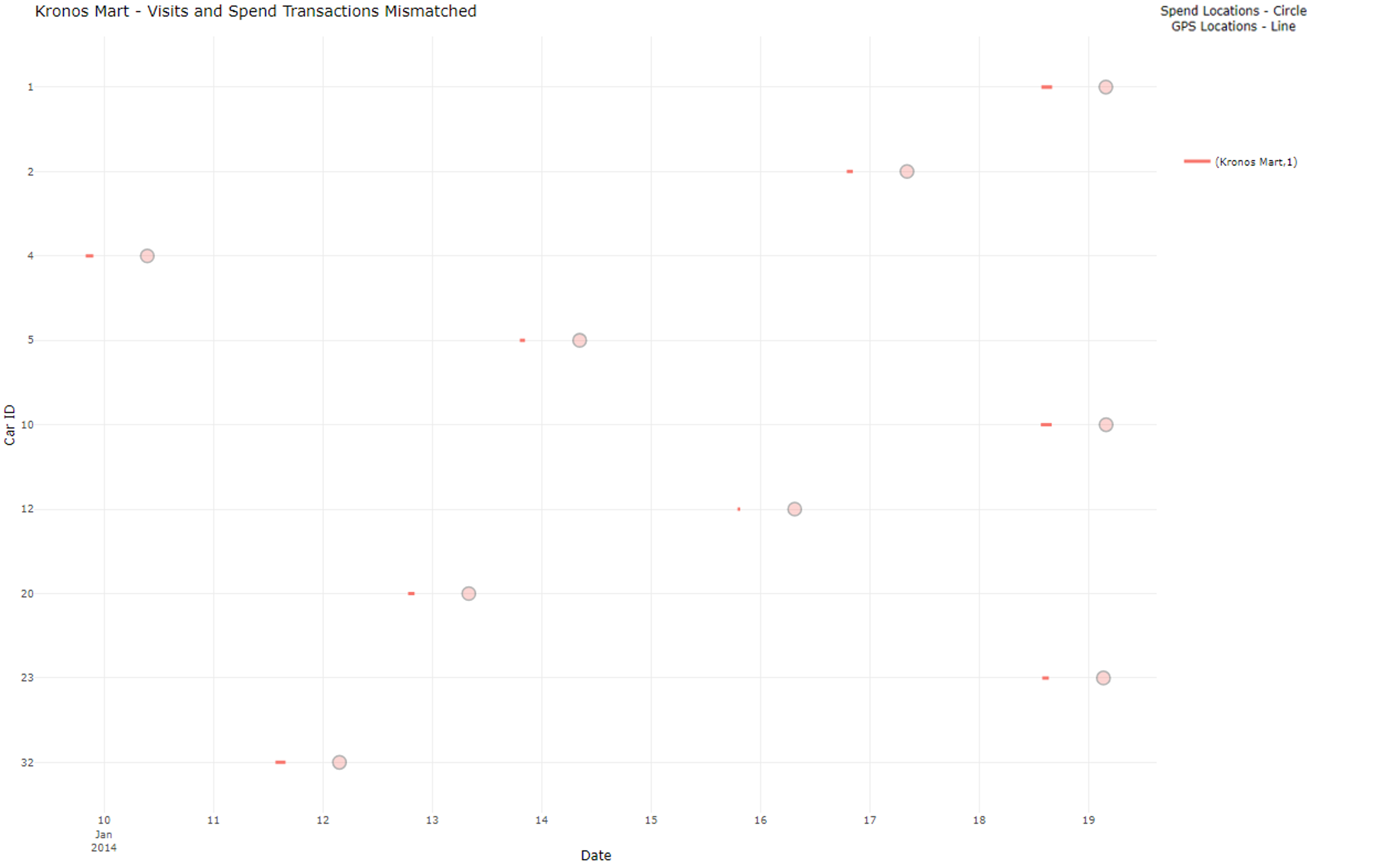

Figure 10: Timeline of Transaction and GPS Event at Kronos Mart

Q2 Anomaly - Confirm High Spend due to Likely Fraud

Nils’ (Car ID 1) credit card had several unexplained spends, including a likely purchase at U Pump and $10,000 at Frydos Autosupply n ‘More. Minke (Car ID 24) was the only person at Frydos Autosupply n ’More when the high purchase was made on Nils’ card (Figure 11). And they were both at Hippokampos together briefly between 11.24PM and 11:31PM before the fraudulent purchases start (Figure 12).

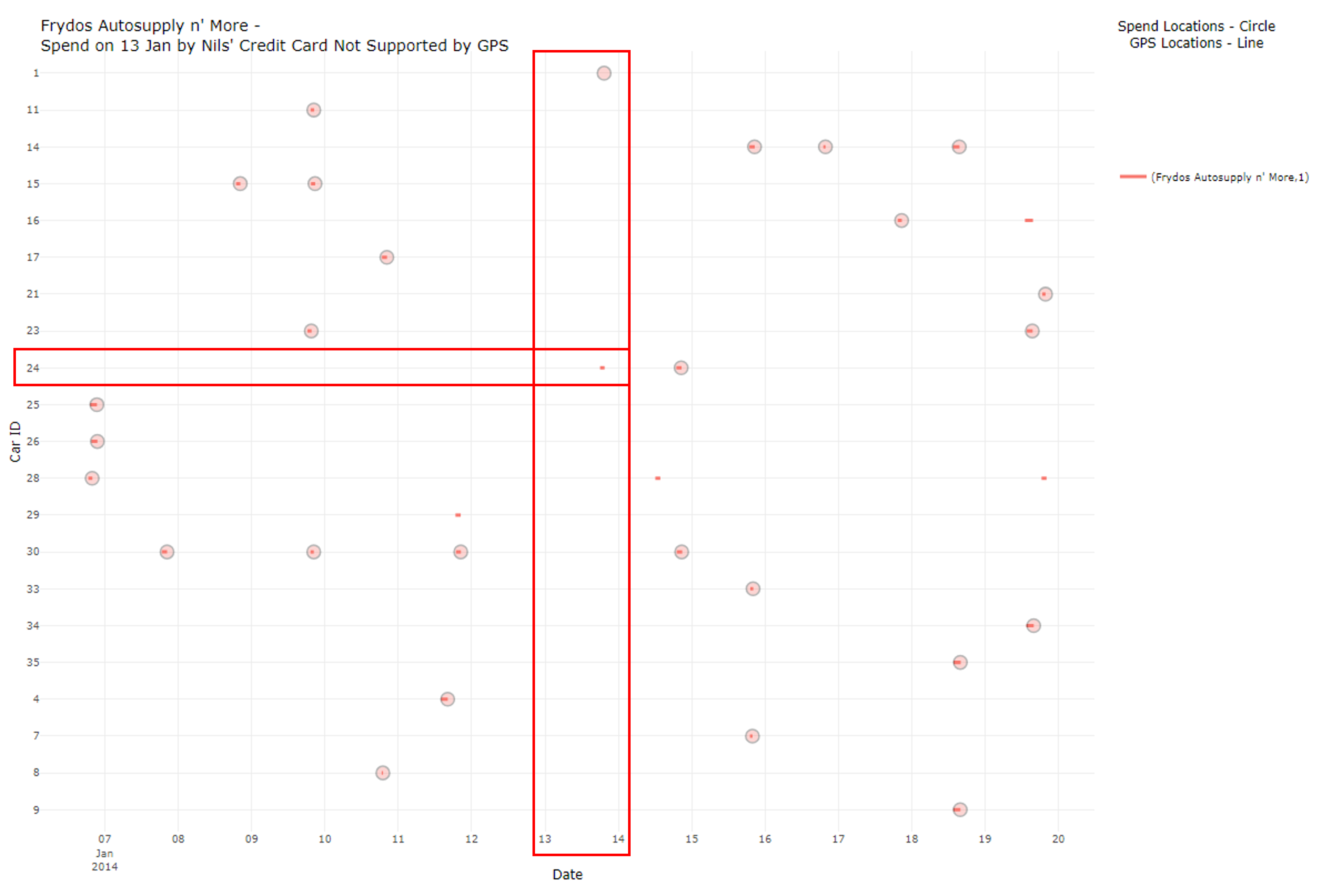

Figure 11: Timeline of Transaction and GPS Event at Frydo’s Autosupply n’ More

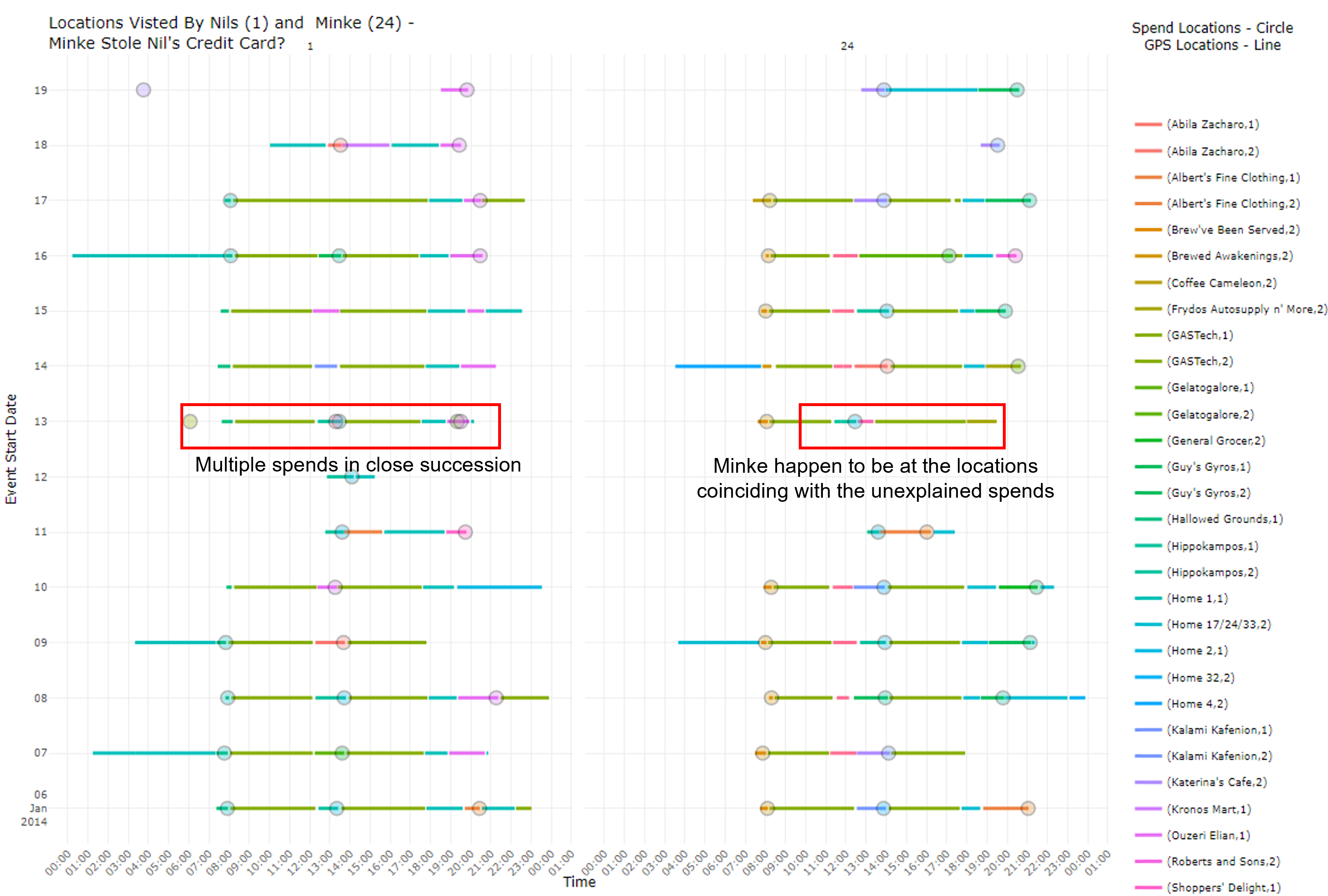

Figure 12: Timeline of Nil and Minke’s Transaction and GPS Event

Q2 Anomaly - Mismatch of Credit Card Location and GPS Location due to Car Pooling and Shared Purchases

Kanon (Car ID 22) and Borrasca (Car ID 28) often drive out and hang out for meals, they registered multiple purchases without supporting GPS locations (highlighted in red in Figure 13).

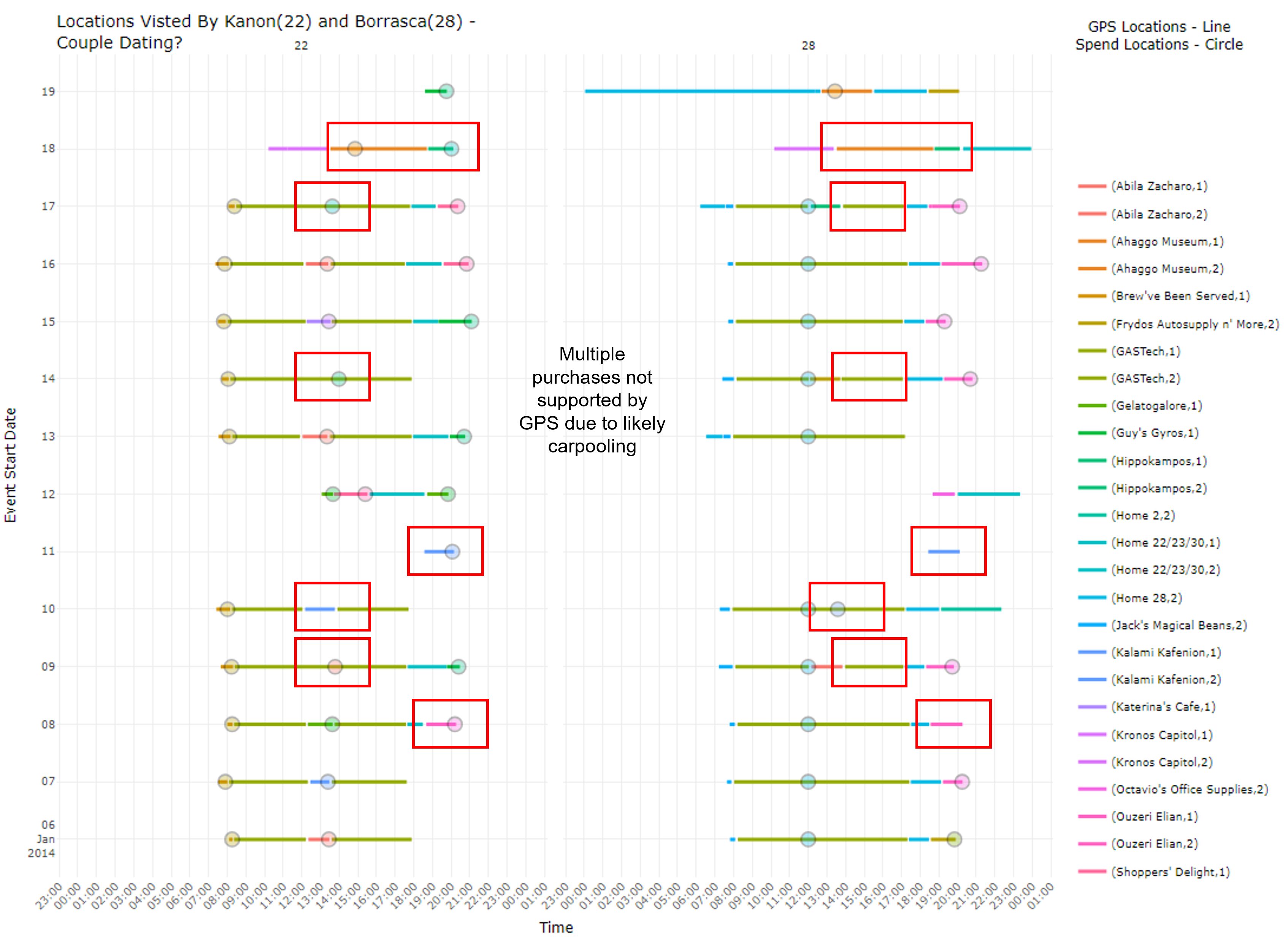

Figure 13: Timeline of Kanon and Borrasca’s Transaction and GPS Event

Q2 Anomaly - Mismatch of Credit Card Location and GPS Location due to Change of Credit Cards

Bertrand (Car ID 29) changed his credit card from 5921 to 3547 on 12 Jan after an erratic night on 11 Jan late night, whereby he visited multiple places but registered no purchases.

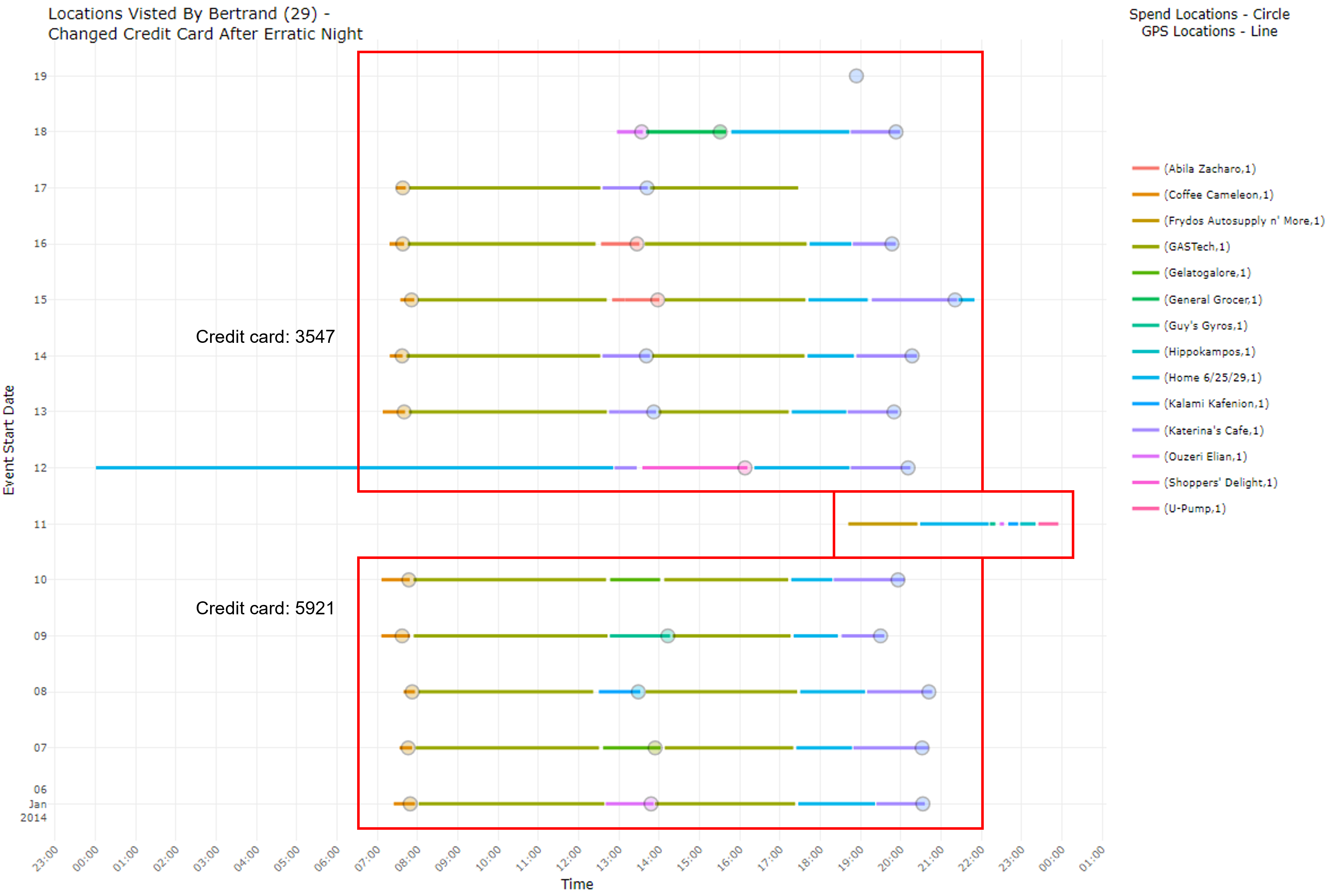

Figure 14: Timeline of Bertrand’s Transaction and GPS Event

Q2 Anomaly - Mismatch of Credit Card Location and GPS Location Due to Other Transport Means

There were transactions on Gustav’s (Car ID 9) credit card in the evenings when his GPS location showed that he should be at home (highlighted in red in Figure 15). We suspect that Gustav took other transportation (e.g. walk or cycle) to the shops near his home such as Hippokampos and Albert’s Fine Clothing to make those purchase.

Figure 15: Timeline of Gustav’s Transaction and GPS Event

Question 3

Can you infer the owners of each credit card and loyalty card? What is your evidence? Where are there uncertainties in your method? Where are there uncertainties in the data? Please limit your answer to 8 images and 500 words.

Q3 Owners of Credit Cards and Loyalty Card

We can infer the owners of each credit card and loyalty card as shown in Figure 16, except for 10 credit cards in Figure 17.

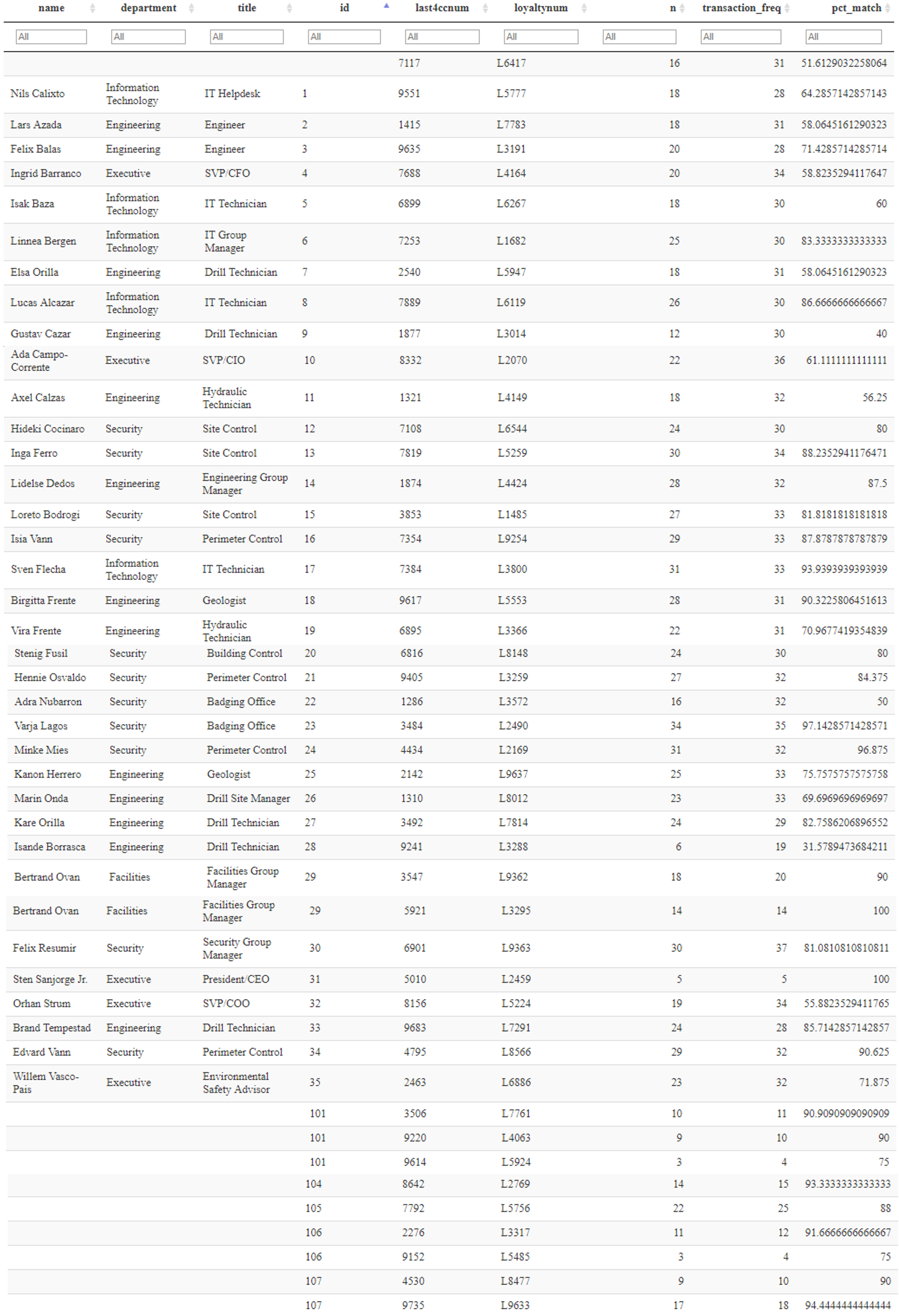

Figure 16: Match Between Credit Card Num and Car IDs

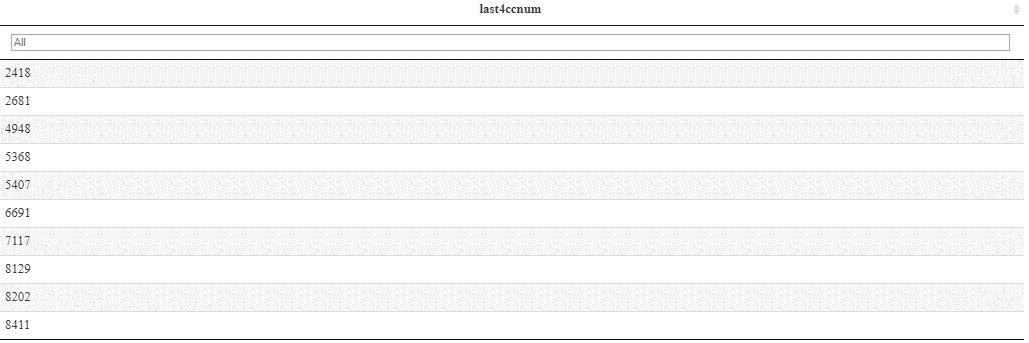

Figure 17: Match Between Credit Card Num and Car IDs

Q3 Evidence - Evidence and Uncertainty

The credit card transactions are matched with GPS events based on the time window and location. After matching the credit card transactions with GPS events, we discover that 50% threshold is able to pick up most of the matches, except Car ID 9 and 28. Using this rule of thumb, we will pick all credit card and Car ID matches that are above 50% match and the top percentage match for Car ID 9 and 28.

Figure 18a: Match Between Credit Card Transactions and GPS Events

We have found the reasons for most of the anomalies and mismatch between credit card transactions and GPS events, except for 3 unknown spends, which could be due to car pooling.

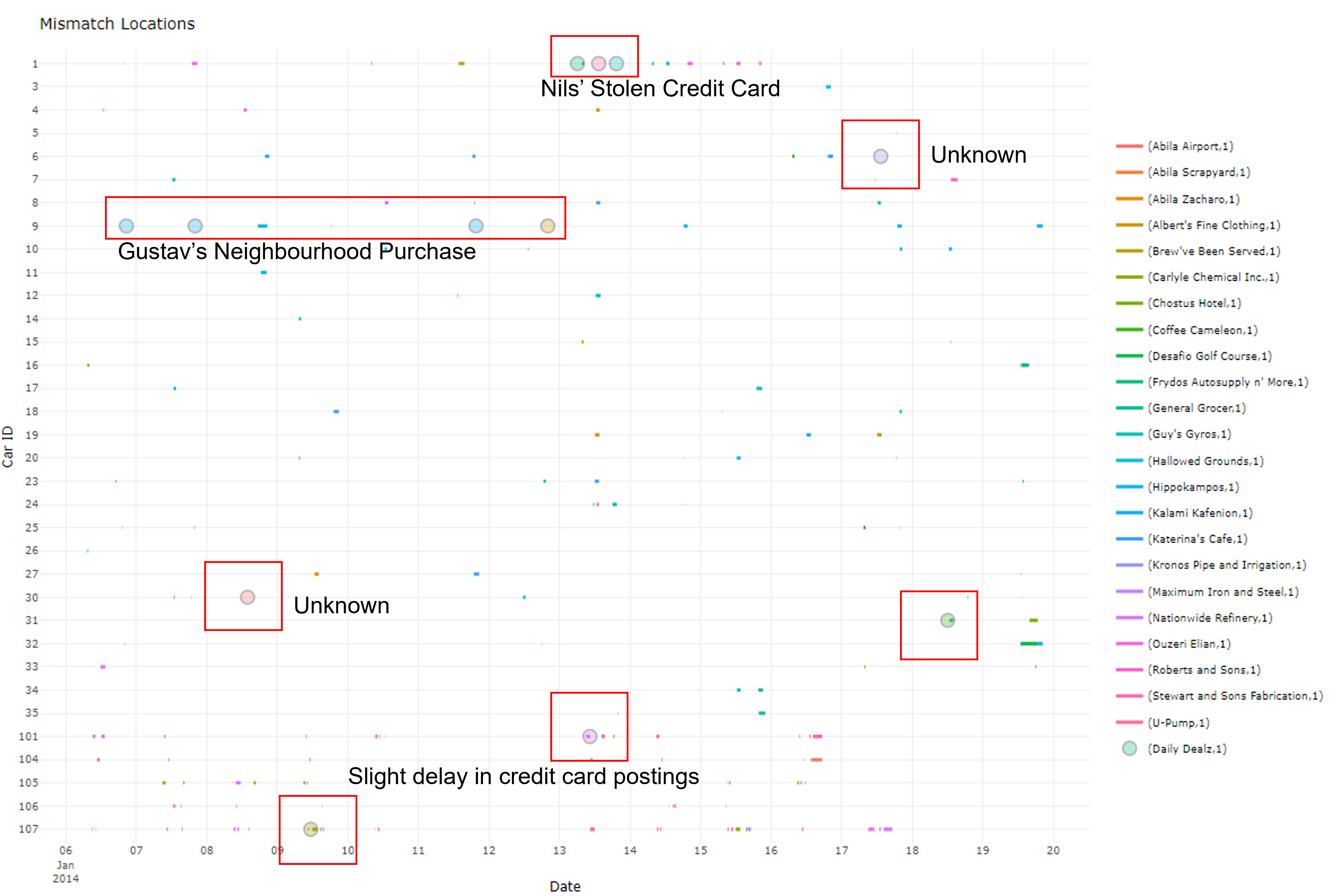

Figure 18b: Mismatch Between Credit Card Transactions and GPS Events

Question 4

Given the data sources provided, identify potential informal or unofficial relationships among GASTech personnel. Provide evidence for these relationships. Please limit your response to 8 images and 500 words.

Q4 Relationships - Inga (Car ID 13), Loreto (Car ID 15), Hennie (Car ID 21), Minke (Car ID 24) visit 5 unknown locations at different times

Inga (Car ID 13), Loreto (Car ID 15), Hennie (Car ID 21), Minke (Car ID 24) have been making stops at 5 unknown locations during noon time over the 2 weeks. They probably are in cahoots conducting some suspicious activities.

Figure 19: Timeline of GPS Event at Unknown Locations

Q4 Relationships - Elsa (Car ID 7) and Brand (Car ID 33) have rendezvous at Chostus Hotel

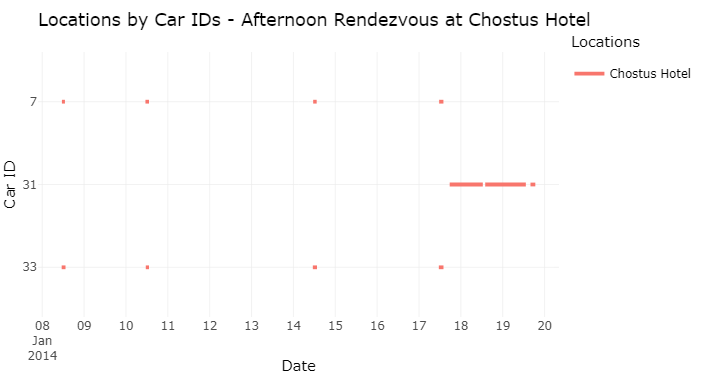

Elsa(7) and Brand(33) visited Chostus Hotel on the same weekday afternoons for four different days. They drove their own cars and paid using their own credit cards.

Figure 20: Timeline of GPS Event at Chostus Hotel

Q4 Relationships - Kanon (Car ID 22) and Borrasca (Car ID 28) are seeing each other

Kanon and Borrasca often drive out and hang out for meals. Kanon also visits Borrasca’s home at times. On Jan 18, Kanon and Borrasca went to Capitol in the morning, and to Museum at noon, to Hippokampos in the afternoon, and to Borrasca’s home at night together.

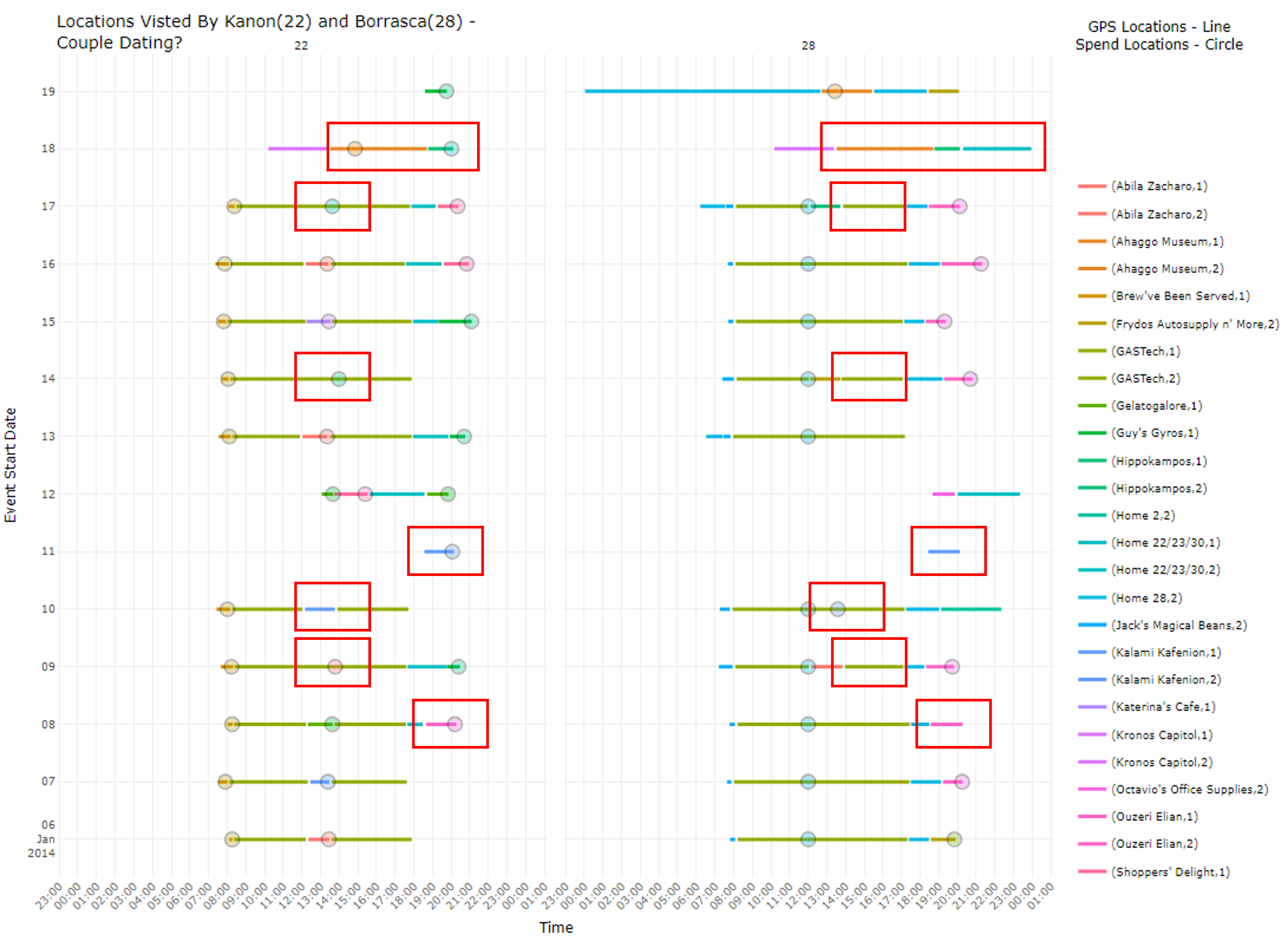

Figure 20: Timeline of Transaction and GPS Event

Q4 Relationships - Dinner party among employees from Engineers and IT departments

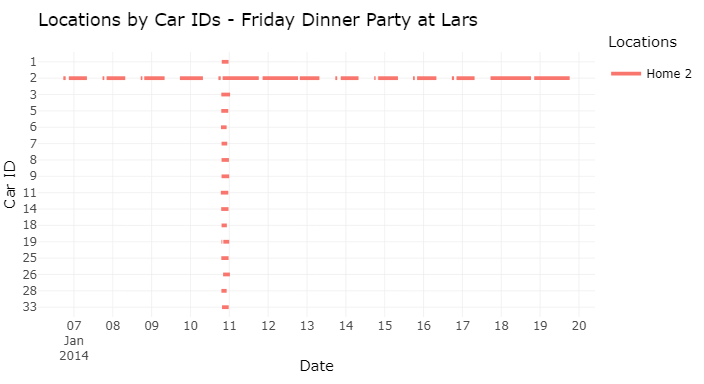

Lars held a home party on the evening of Jan 10, returning home earlier around 5PM that evening to prepare for it. He invited at least 15 colleagues: 12 people from the engineering department and 4 people from the IT department who stayed between 7PM and 11PM.

Figure 21: Timeline of GPS Event of Lars’ Home

Q4 Relationships - Shared homes of employees from various departments

From the parallel coordinate plot in Figure , we see that 8 of the 15 employees who stay in shared homes are from the Security department.

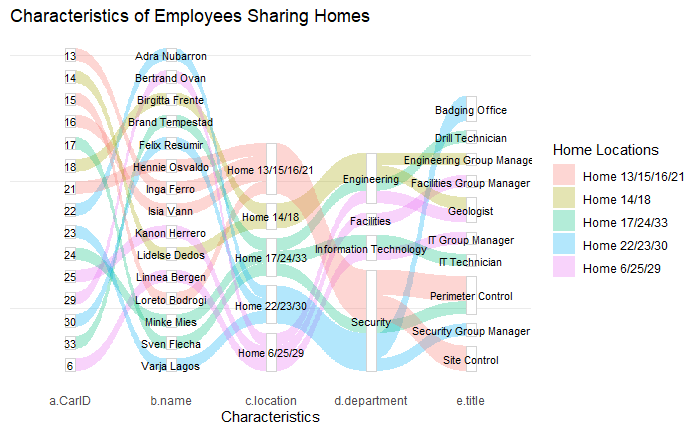

Figure 22: Characteristics of Employees Who Share Homes

Q4 Relationships - Hennie’s (Car ID 21) second home

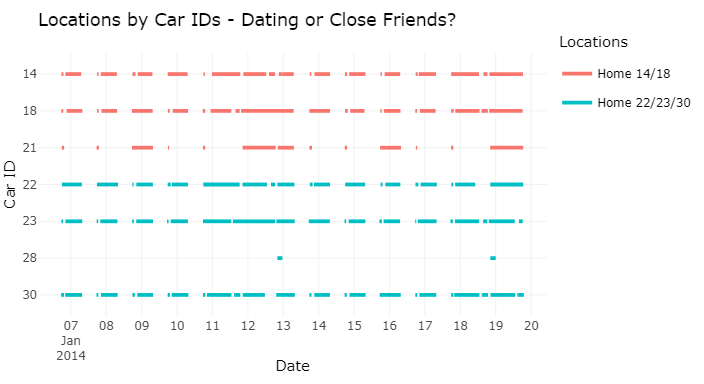

Hennie visits Home 14/18 of Lidelse (Car ID 14) and Birgitta (Car ID 18) from Engineering department every day and stays over for a couple of nights per week.

Figure 23: Timeline of Hennie’s Social Visit to Home 14/18

Q4 Relationships - Executives’ weekend golf

Over the two weekends, the executives all went to play golf. Orhan missed the first weekend and joined only when CEO Sten joined when he was in Aliba.

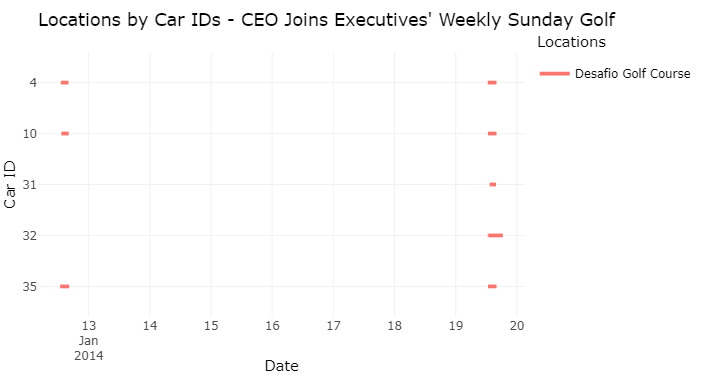

Figure 24: Timeline of Executives’ Weekend Golf

Question 5

Do you see evidence of suspicious activity? Identify 1- 10 locations where you believe the suspicious activity is occurring, and why. Please limit your response to 10 images and 500 words.

Q5 Location - Drives to 5 unknown houses

Inga(13), Loreto(15), Hennie(21), Minke(24) repeatedly visited five suspicious places around the middle of the day usually for 1 hour (Figure 25). Routes are usually to and fro GasTech and the unknown locations. These places cannot be identified via credit card transactions nor were accessed by other employees. Hennie stayed over at one of the unknown locations for more than half a day on 11 Jan.

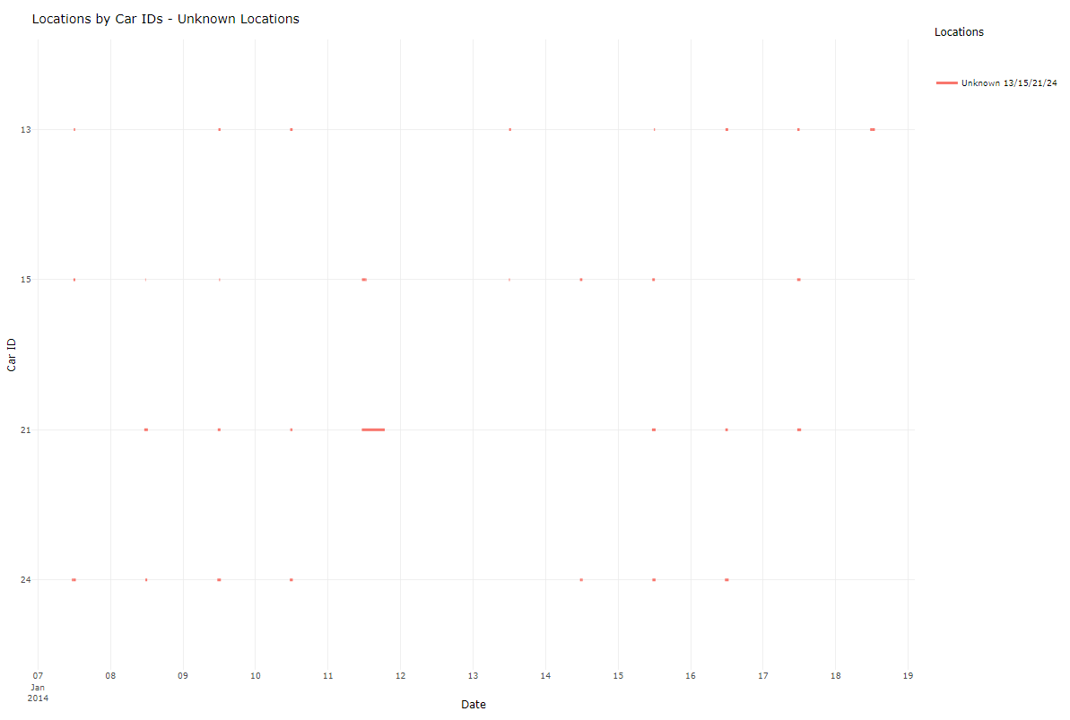

Figure 25: Timeline of GPS Events at Unknown Locations

The routes that each person takes are similar (Figure 25a - d), for example, passing by Home 5 (Isak from IT) and other smaller lanes in a zig-zag manner. This raises the suspicion if the routes are elaborate plans meant to throw the police off.

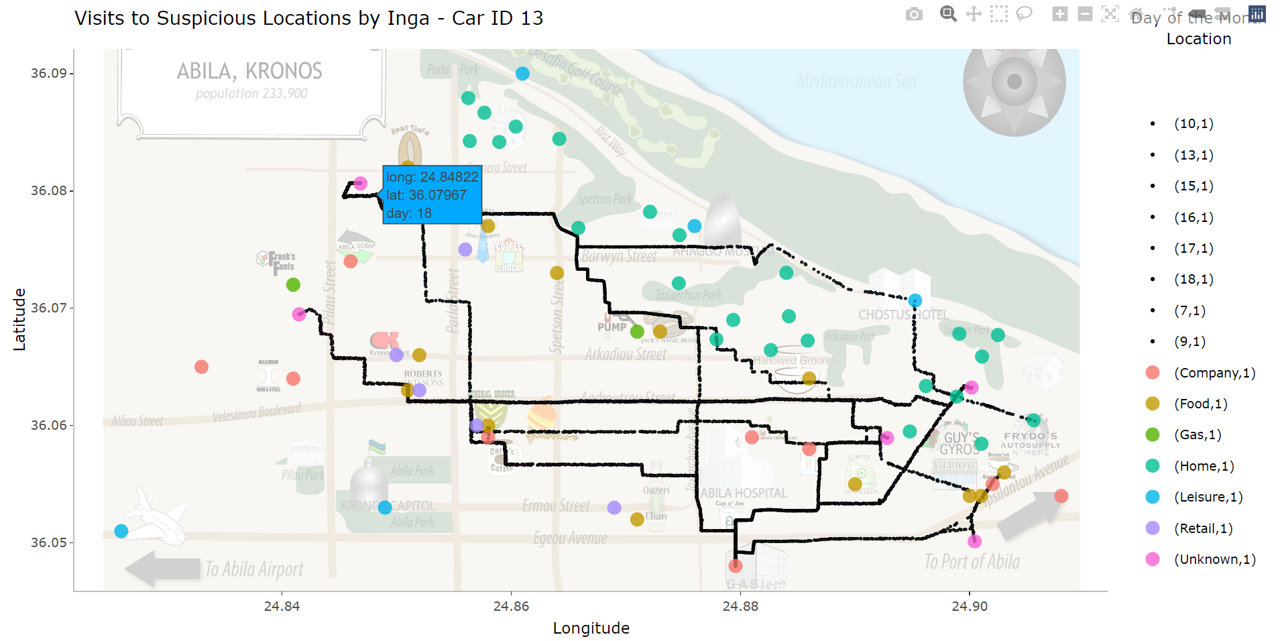

Figure 25a: Routes To Unknown Locations by Inga (13)

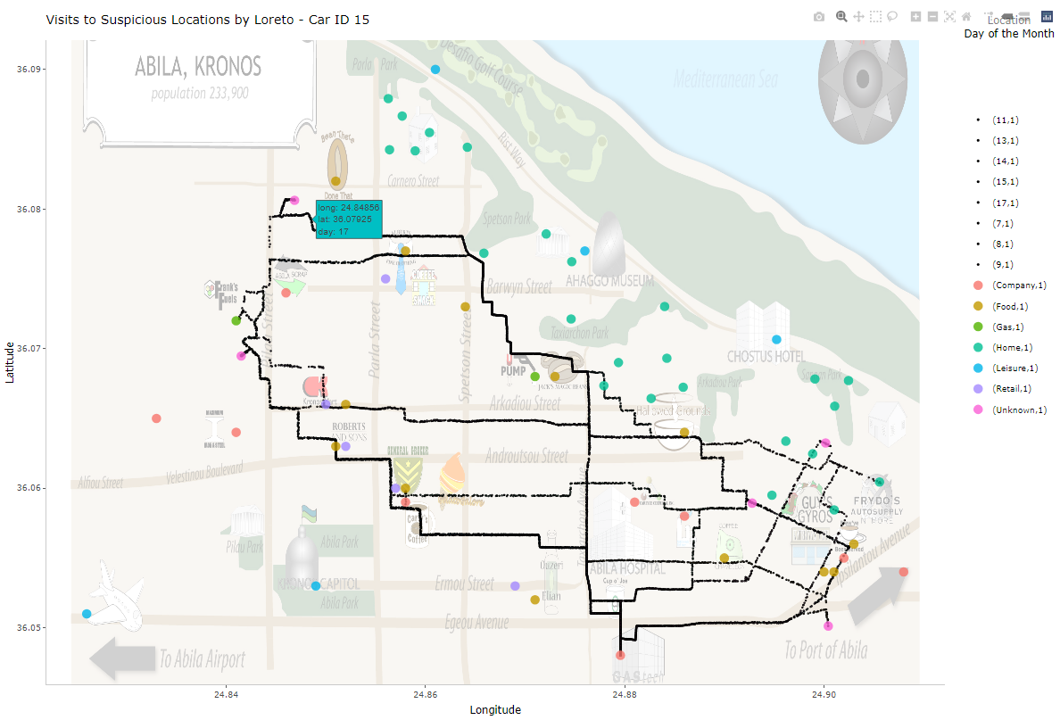

Figure 25b: Routes To Unknown Locations by Loreto (15)

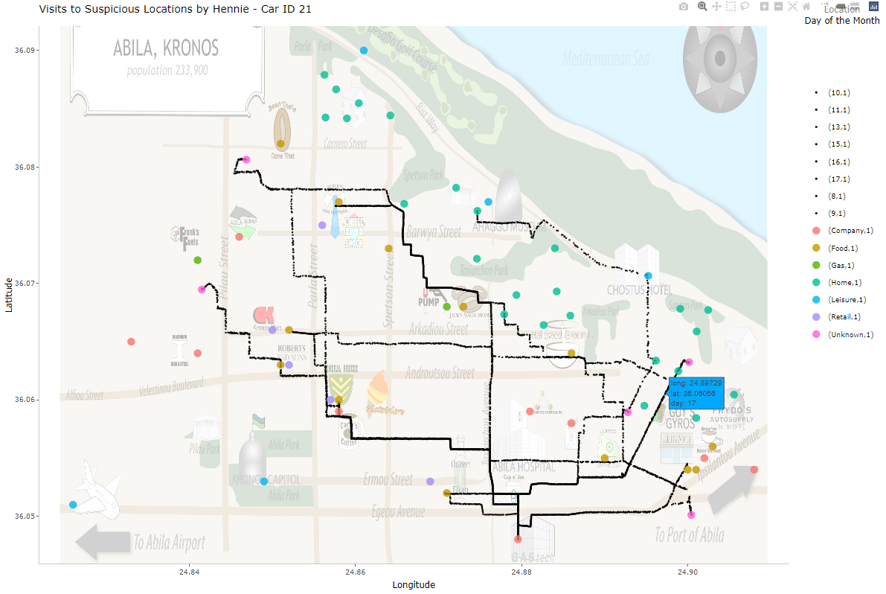

Figure 25c: Routes To Unknown Locations by Hennie (21)

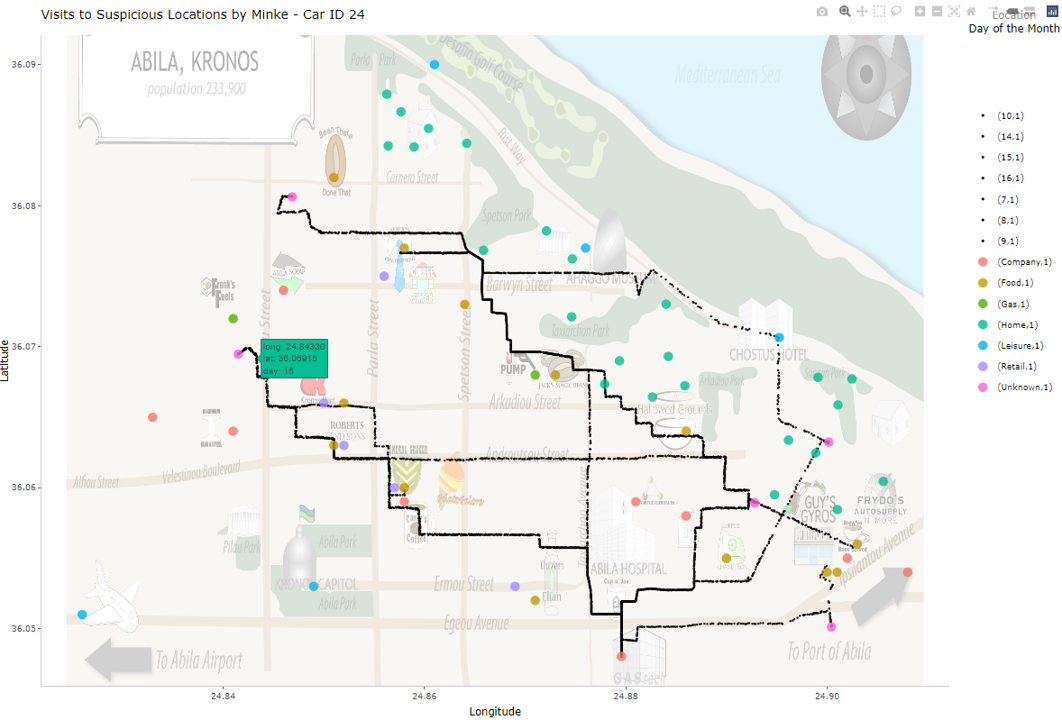

Figure 25d: Routes To Unknown Locations by Minke (24)

Q5 Location - Surveillance on 4 Executives’ houses

Isia(16), Loreto(15), Hennie(21), Minke(24) spy on the 4 Executive houses in the middle of the night (Figure 26). There will be a brief co-location between 2 of them each time, for example, Loreto and Isia on 7 Jan at Home 10, Loreto and Minke on 9 Jan at Home 32. The suspects will make a drive from their homes to the area where the Executives live (Figure 26a).

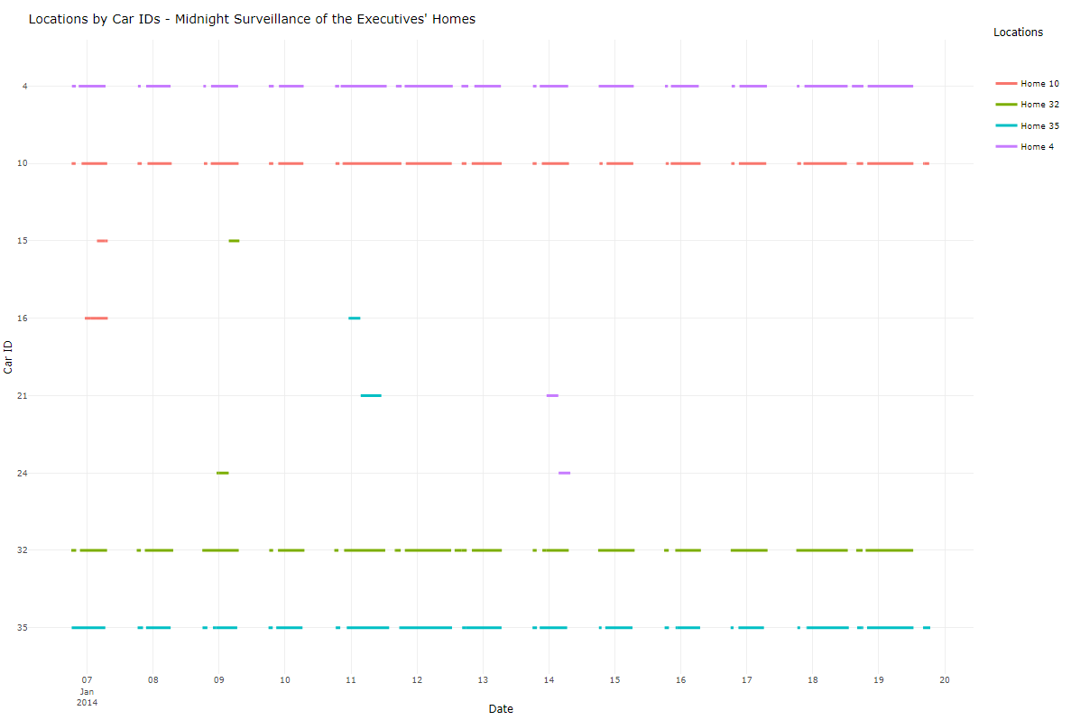

Figure 26: Timeline of Midnight Surveillance at Executives’ Homes

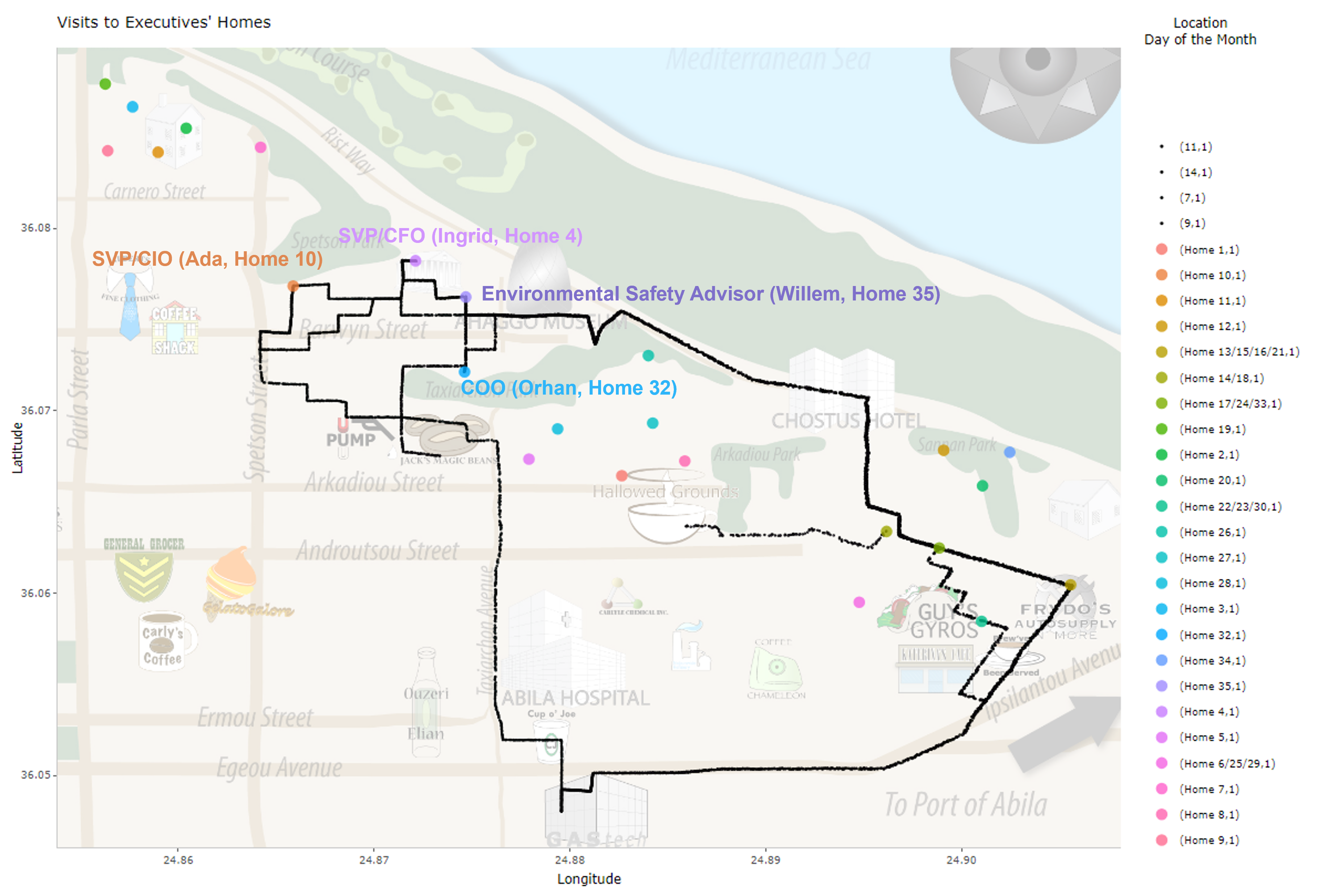

Figure 26a: Routes to Surveillance at Executives’ Homes

Q5 Location - Surveillance at Executives’ dining spots

From the timeline of GPS Events at Brewed Awakenings and Guy’s Gyros (Figure 27 and 28), we see that Isia(16), Loreto(15) and Minke(24) have co-located in food establishments that several of the Executives were at, including Sten (Car ID 31) the CEO’s visit to Guy’s Gyros on 19 Jan.

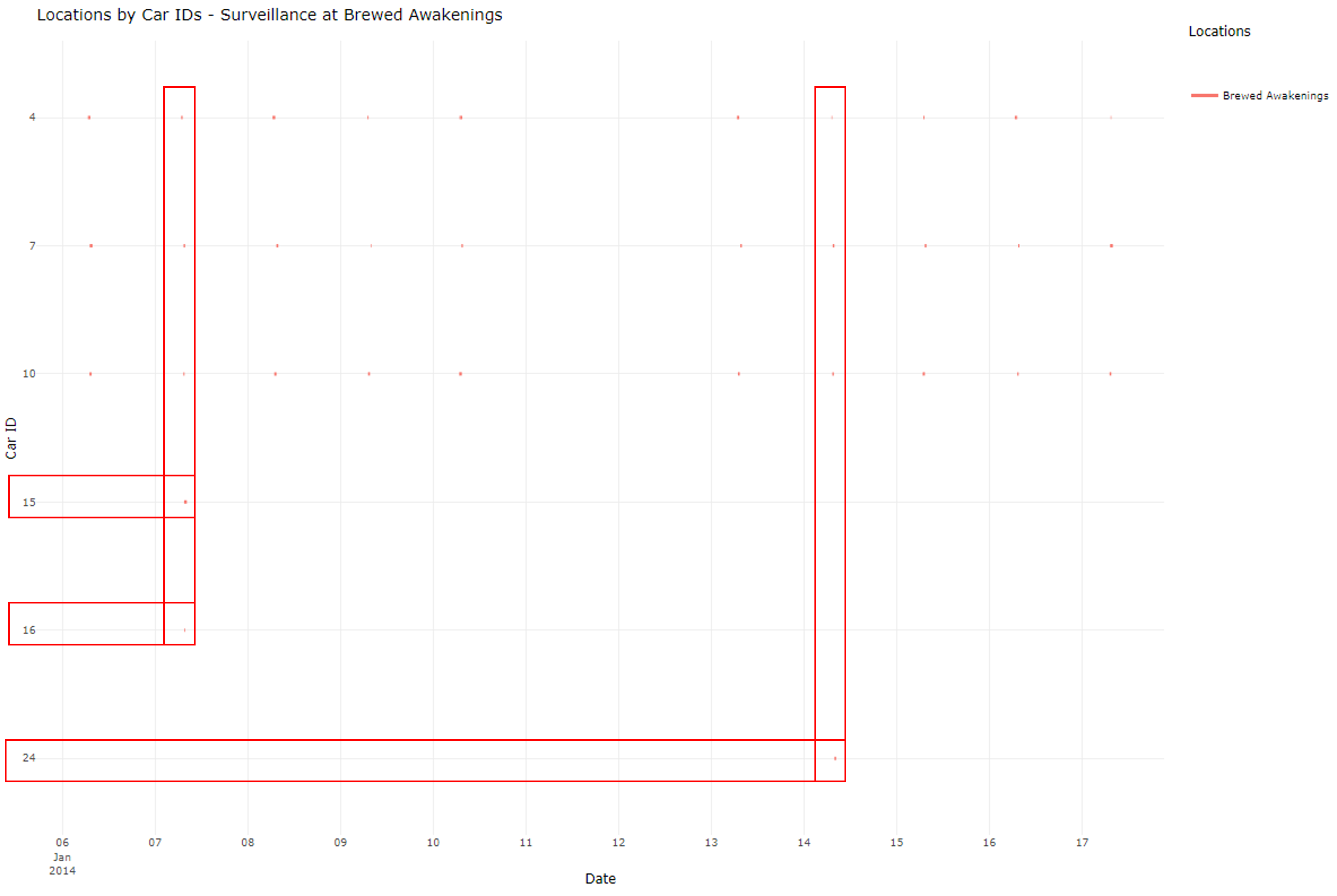

Figure 27: Timeline of GPS Events at Brewed Awakenings

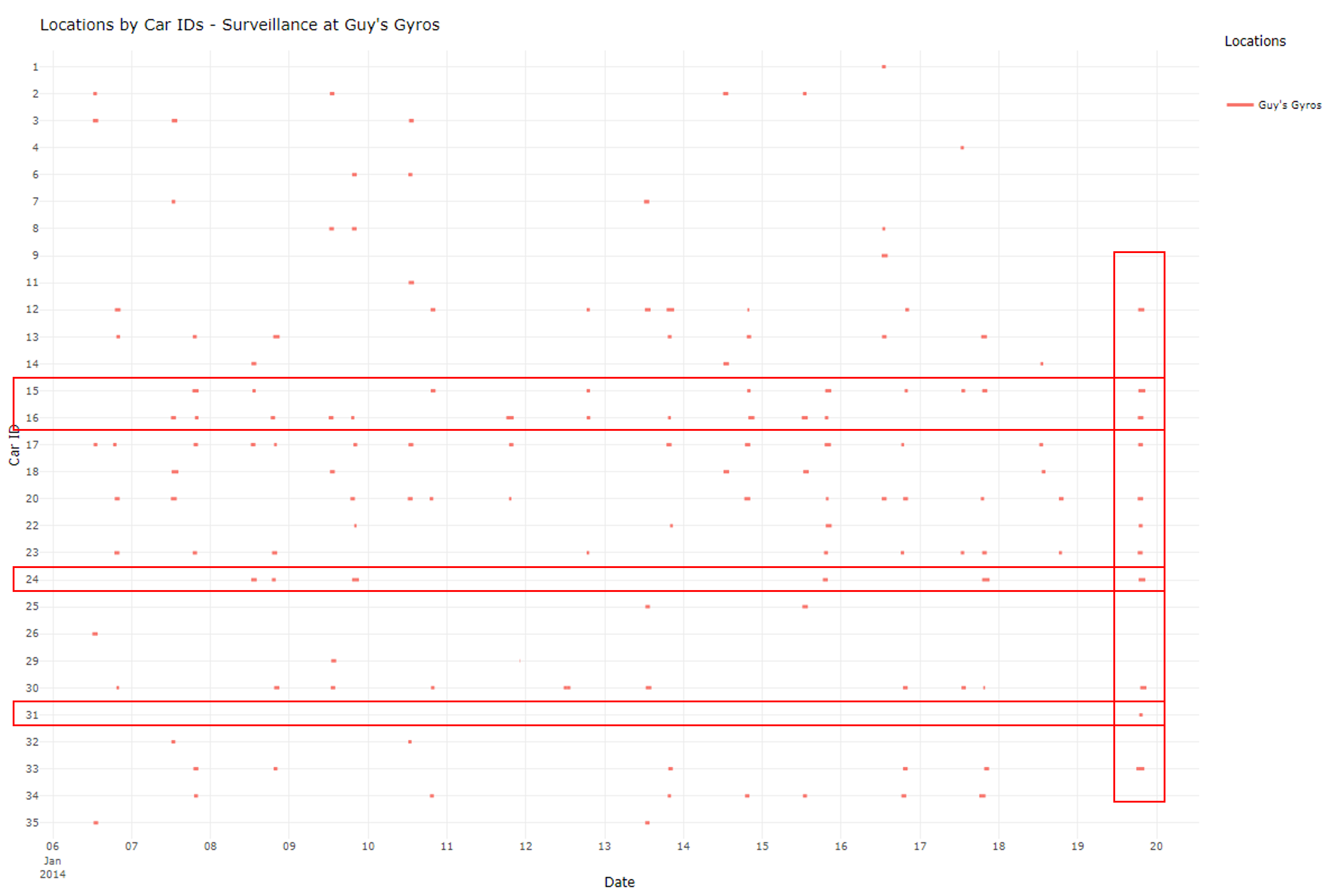

Figure 28: Timeline of GPS Events at Guy’s Gyros

Q5 Location - Kronos Capitol

Several employees visit Kronos Capitol on 18 Jan. We can safely eliminate the visit by Kanon (Car ID 22) and Borrasca (Car ID 28) as it is likely innocuous based on their time line. It is unusual that Kanon (25) parked his car there for a full day from noon of 18 Jan to noon of 19 Jan. And one of the suspects Loreto (15) happen to be there when it happened.

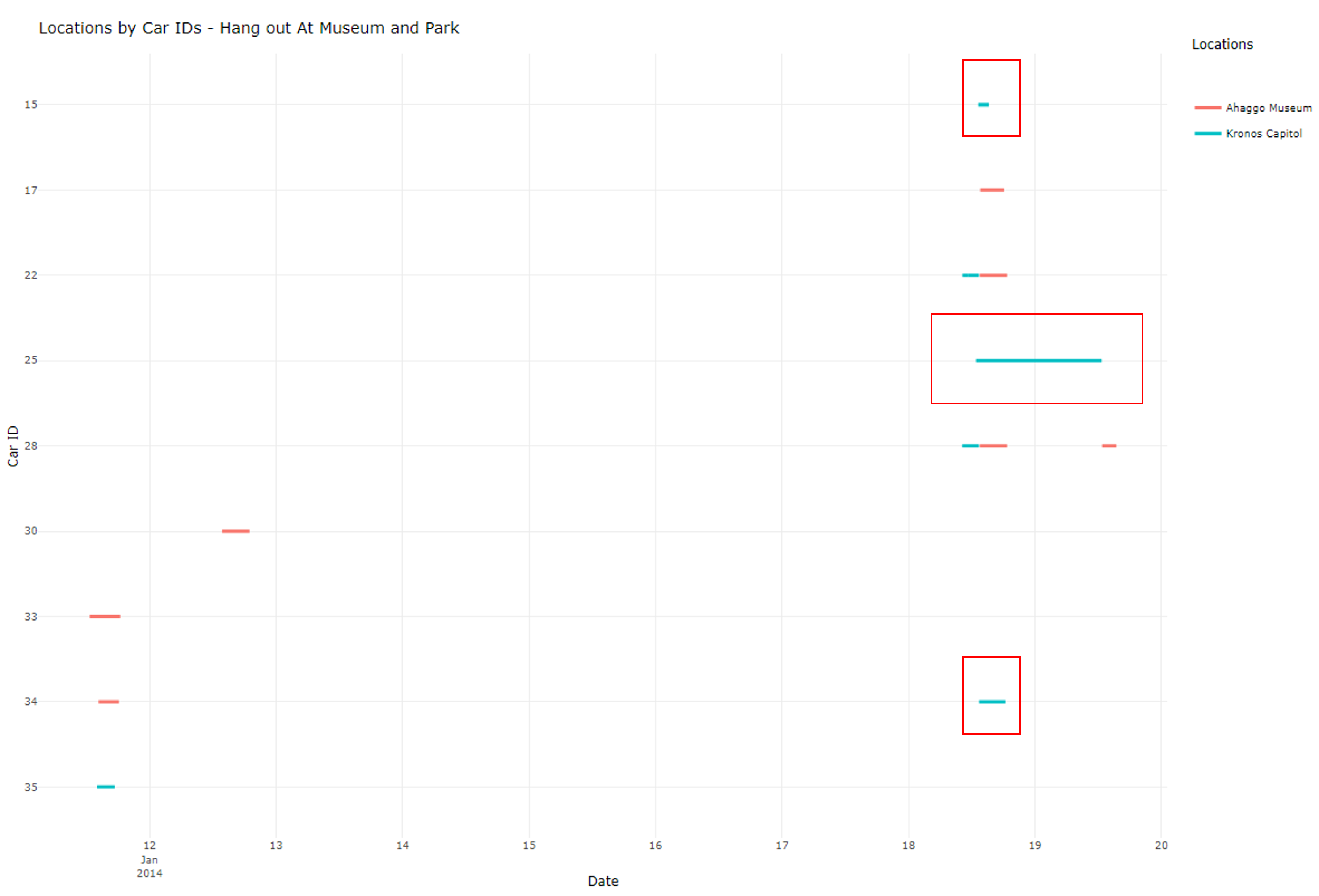

Figure 29: Timeline of GPS Events at Kronos Capitol

Q5 Location - Bertrand’s late night trip to several locations

Bertrand (29) took late night trip starting from his home around 10PM. He visited Guy’s Gyros (10:15PM), Ouzeri Elian (10:29PM), Kalami Kafenion (10:40PM), Hippokampos (10:55PM), U-Pump (11:25PM) before heading home at midnight. He changed his credit card the next day.

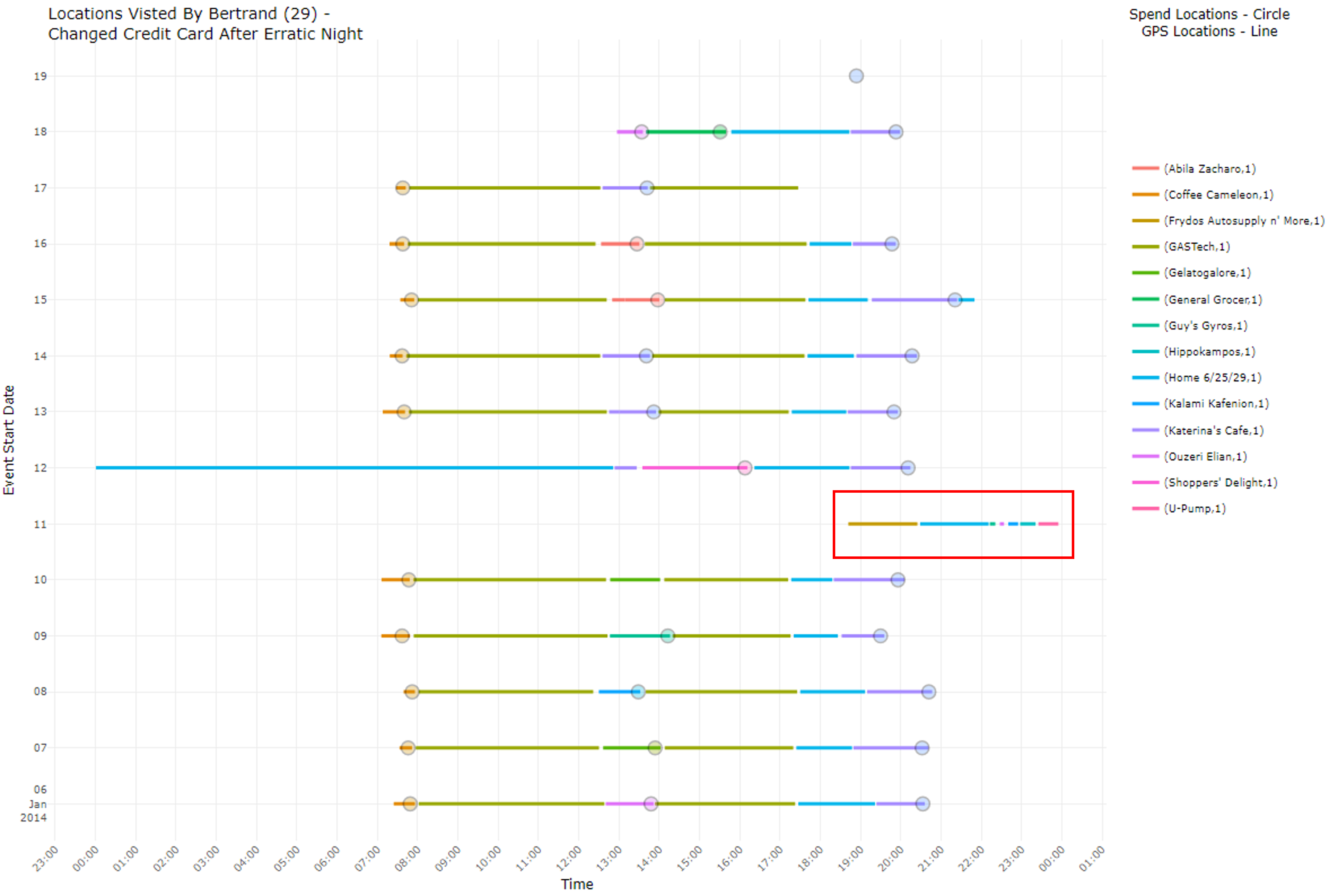

Figure 30: Timeline of Spend and GPS Events of Bertrand
