DataViz Makeover 1

In this post, we present a trade data use case applying the fundamentals of Visual Analytics using Tableau. We will critique the visualisation and propose an alternative to address the flaws.

Kelly Koh https://www.linkedin.com/in/kellykkw/ (School of Computing and Information Systems, Singapore Management University)https://scis.smu.edu.sg/
05-30-2021

1. Critique of Visualisation

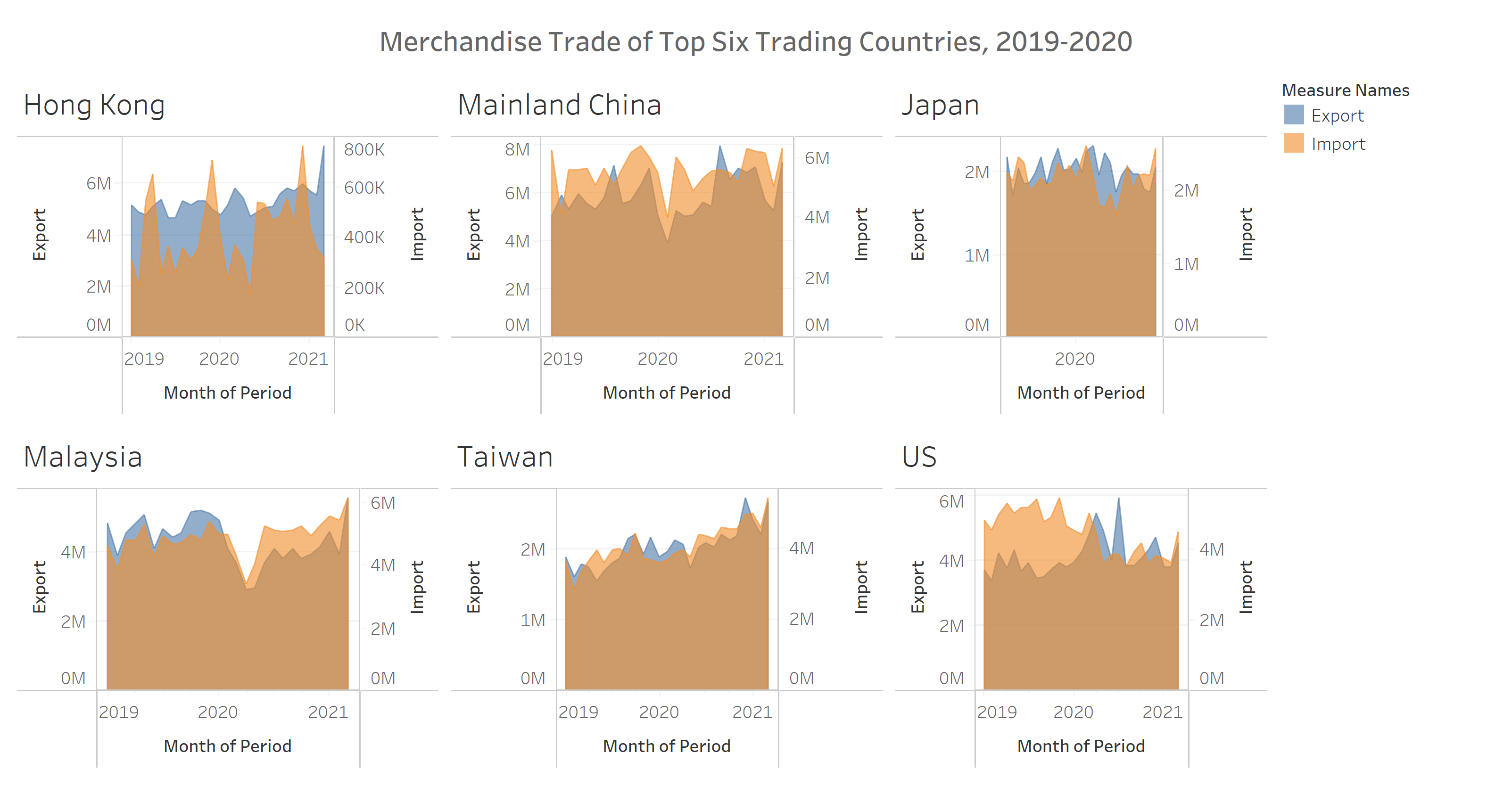

The original visualisation is created by using data provided by Department of Statistics, Singapore (DOS). The data are available under the sub-section of Merchandise Trade by Region/Market.

1.1 Clarity

  1. Titles: The title and legend of the data visualization do not convey the message well.
    • Title mentions that the charts show merchandise trade of top six trading countries without clarifying that they are trading partners of Singapore. We are also unsure if the top six are selected based on total merchandise trade.
    • One of the charts feature Hong Kong, which is a special administration region of China, not a country.
    • The unit of measure is also not clear as neither the main title nor the legend title mention if the charts are measuring physical arrivals of merchandise or the monetary value of the merchandise. The source data reveals that the unit of measure is in Singapore dollars.
    • Title indicates that the data is from 2019 to 2020 but the charts show values from 2019 to 2021.
    • Title does not mention what is the granularity of the data presented (e.g. yearly, quarterly or monthly).
    • No insights highlighted
  2. Chart Type: The area charts are standalone, making it hard for readers to compare the trade value across the partners.
  3. Y-Axis: The Y-axes of the charts are misleading.
    • The scales of the dual axes of each chart are not synchronised. For example, maximum scale value of export to Hong Kong with tick mark is 6M and 800K for import. The horizontal tick lines follow the primary Y-axis (export). As such, we cannot visually tell what is the relative value of export and import.
    • Furthermore, the scales of the Y-axes are not fixed across the six charts, preventing us from determining the relative ranking of the six countries/regions based on their merchandise trade.
  4. X-Axis: The X-axis of the charts are misleading.
    • The x-axis of the charts is labeled ‘Month of Period’ but only show the years without minor tick marks to indicate the months. We are unsure when does the data truly end.
  5. Annotation / Source:
    • There is no annotation on the graph that highlights the significant finding or conclusion.
    • There is no recognition of the data source.

1.2 Aesthetic

  1. Legend: The legend is placed on the right side of the chart. Readers could not immediately identify if the blue or orange area refer to export or import.
  2. Title: The main graphic title’s font size is smaller than the subtitle for each chart and not centralized.
  3. Chart Order and Sizing: There is no obvious logic in the ordering of the six charts. The chart widths vary.
  4. Axis Labels: The axis labels for Y-axis and X-axis are repeated unnecessarily.
  5. Colours and Shading: The area charts used blue and orange, which are friendly to color blind readers. And transparency is used to avoid occlusion issues. However, the overlap of blue and orange is distracting and prevent readers on focusing on the difference between export and import.
  6. Data Ink: There is data ink on the axes labels but not the values of the tick marks.

2. Proposed Design

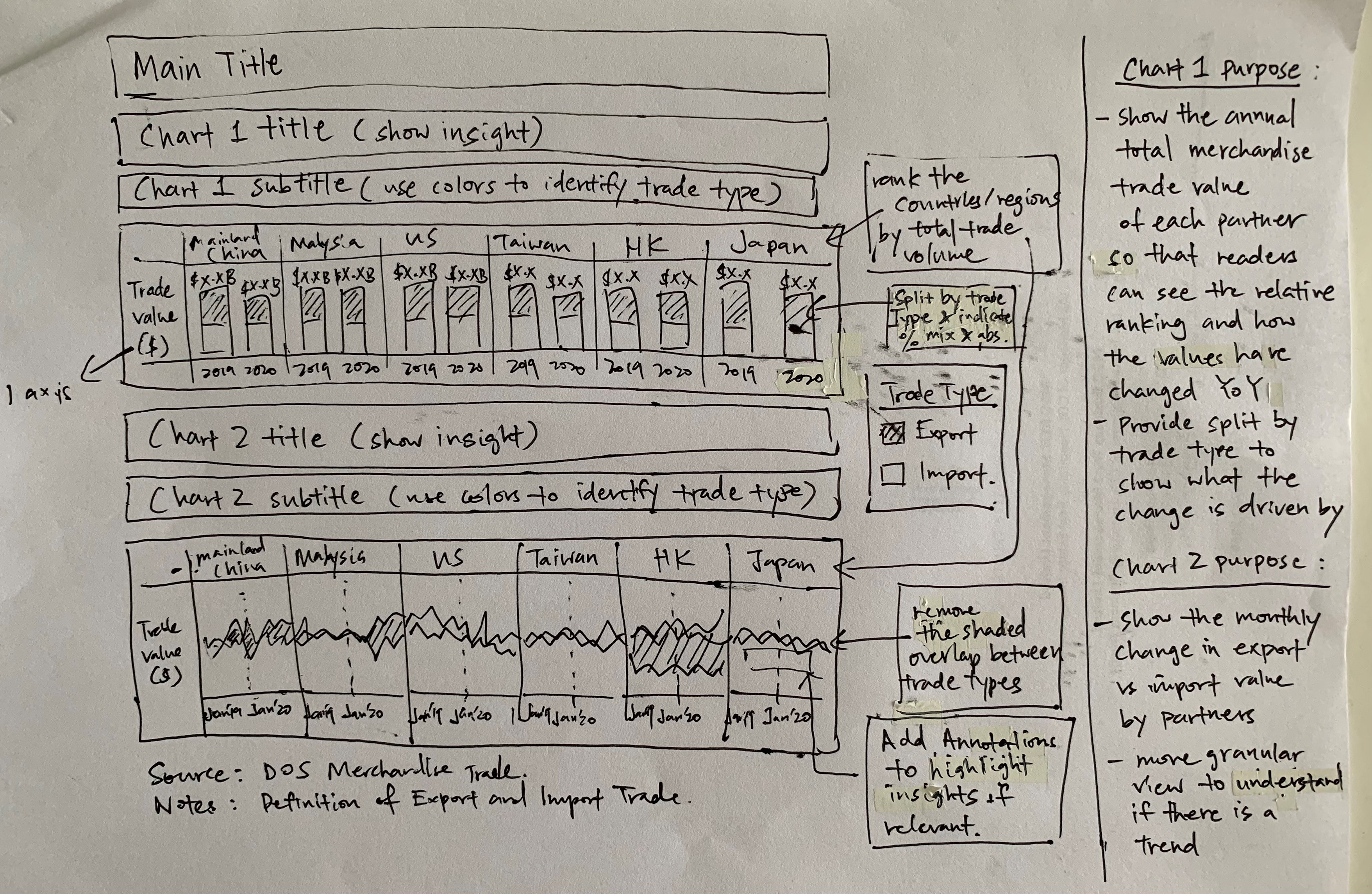

The initial sketch of proposed design is as follow:

2.1 Clarity

  1. Titles:
    • To use the term ‘trade partners’ to represent the countries and regions
    • To add a main visual title to give readers the context - ‘Singapore’s Merchandise Trade with Major Partners’
    • To have a title for each chart that showcases the main insight.
    • To add a functional subtitle for each chart. It should identify the granularity of the data, the unit of measure for the Y-Axis and the period covered.
  2. Chart Type:
    • Opt for trellis charts to allow easy comparison across the partners with 1 primary Y-axis
    • Add Chart 1, a bar chart to give readers an overview of how the 6 major trading partners are ranked based on annual total merchandise trade value and the split between export and import for each year
    • Chart 2 will be a modified version of the original visualisation in trellis format to show the monthly trends of export and import trade. It will showcase if the partner was a net exporter or importer month-on-month.
  3. Y-Axis:
    • Keep to a primary Y-axis
    • Indicate the unit of measure ‘$X.XB’ on the scales and indicate the granularity in the label ‘(Billions)’
  4. X-Axis:
    • For Chart 2, indicate start of the year with ‘Month’ and ‘Year’ e.g. ‘Jan’19’ as major tick mark and every month as minor tick marks. Chart should not show 2021.
    • For Chart 2, add a reference line at start of 2020 to allow readers to easily compare between the monthly trends between 2019 and 2020
  5. Annotation / Source:
    • Add annotations to both charts to highlight points that support the insights
    • Add notes and data source at foot of visualisation to explain the shaded area of Chart 2

2.2 Aesthetic

  1. Legend:
    • Remove the need for a legend by changing the font color of the word ‘Export’ to blue and ‘Import’ in the functional titles to orange to guide readers.
  2. Title:
    • Align the titles to the left
    • Choose distinctive font sizes for main visual title, chart title and chart subtitles
  3. Chart Order and Sizing:
    • Rank the partners based on total trade value in the trellis charts
    • Align the tiles between Chart 1 and 2 so that readers can easily compare across charts if wanted
  4. Data Ink:
    • Enhance data ink for Y-axis and X-axis values and partner names
  5. Axis Labels:
    • Remove both axis labels for ‘Country’ and ‘Month’ to avoid repetition and excess information
  6. Colours and Shading:
    • Remove the overlap between the blue and orange area
    • Overlay the area charts with line charts to allow users to identify the trend easier

3. Proposed Visualisation on Tableau

Please view the proposed visualisation on Tableau Public here.

4. Step-By-Step Preparation

No Step Action
1 Unzip the output folder downloaded from the SingStat website. Load the outputFile excel file into Tableau Prep Builder. Drag the ‘T1’ and ‘T2’ worksheet into main pane.
2 Use the Data Interpreter. Rename ‘T1’ and ‘T2’ to ‘Import’ and ‘Export’ respectively and initiate the cleaning node from each data node.

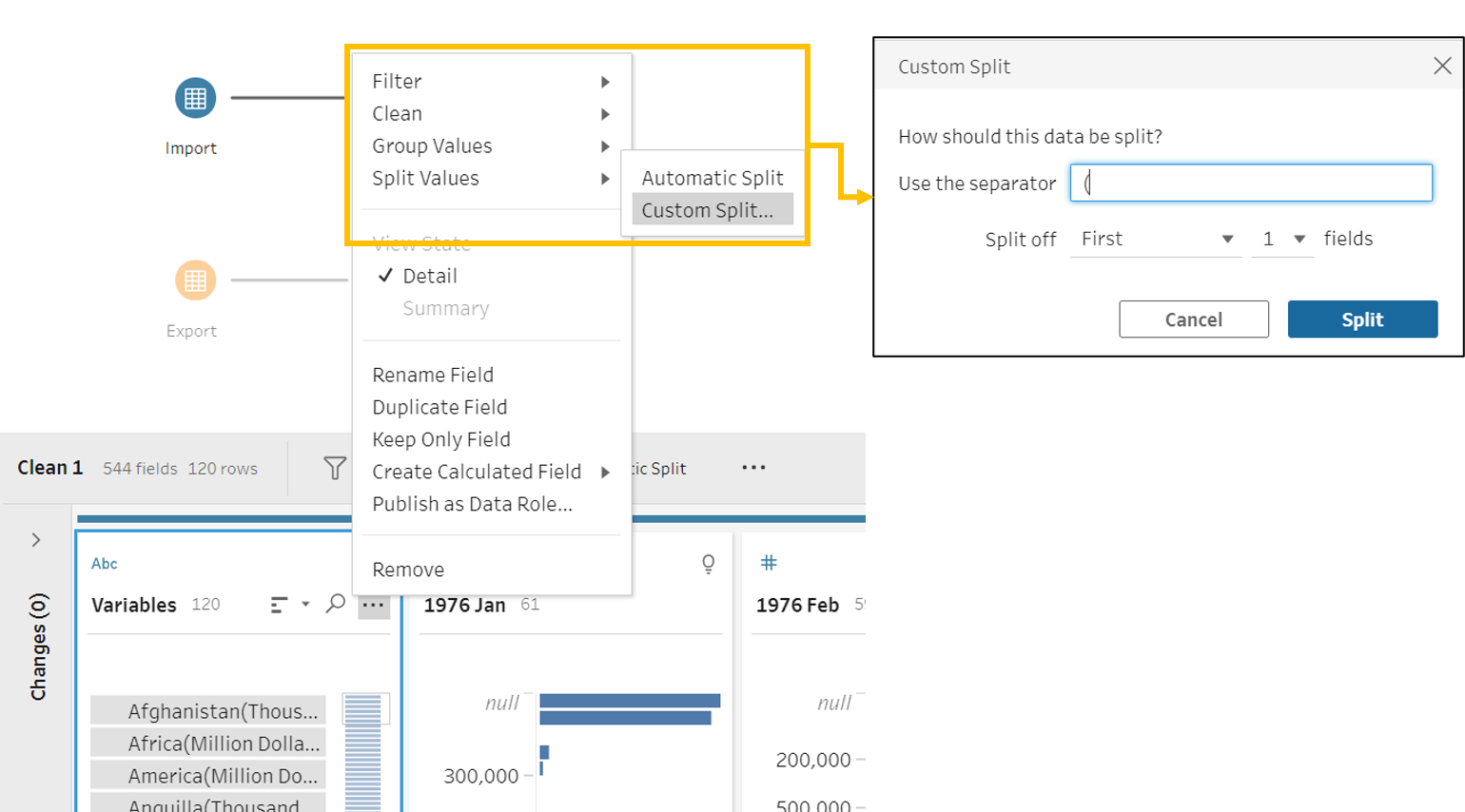

3 Under the ‘Clean 1’ node, clean ‘Variables’ using ‘Split Values’ with ‘(‘ as the separator. Rename column as ‘Country’. Repeat for ‘Clean 2’.
4 Under ‘Clean 1’ node, filter the rows under ‘Country’ to remove non-Country and total observations. Repeat for ‘Clean 2’.

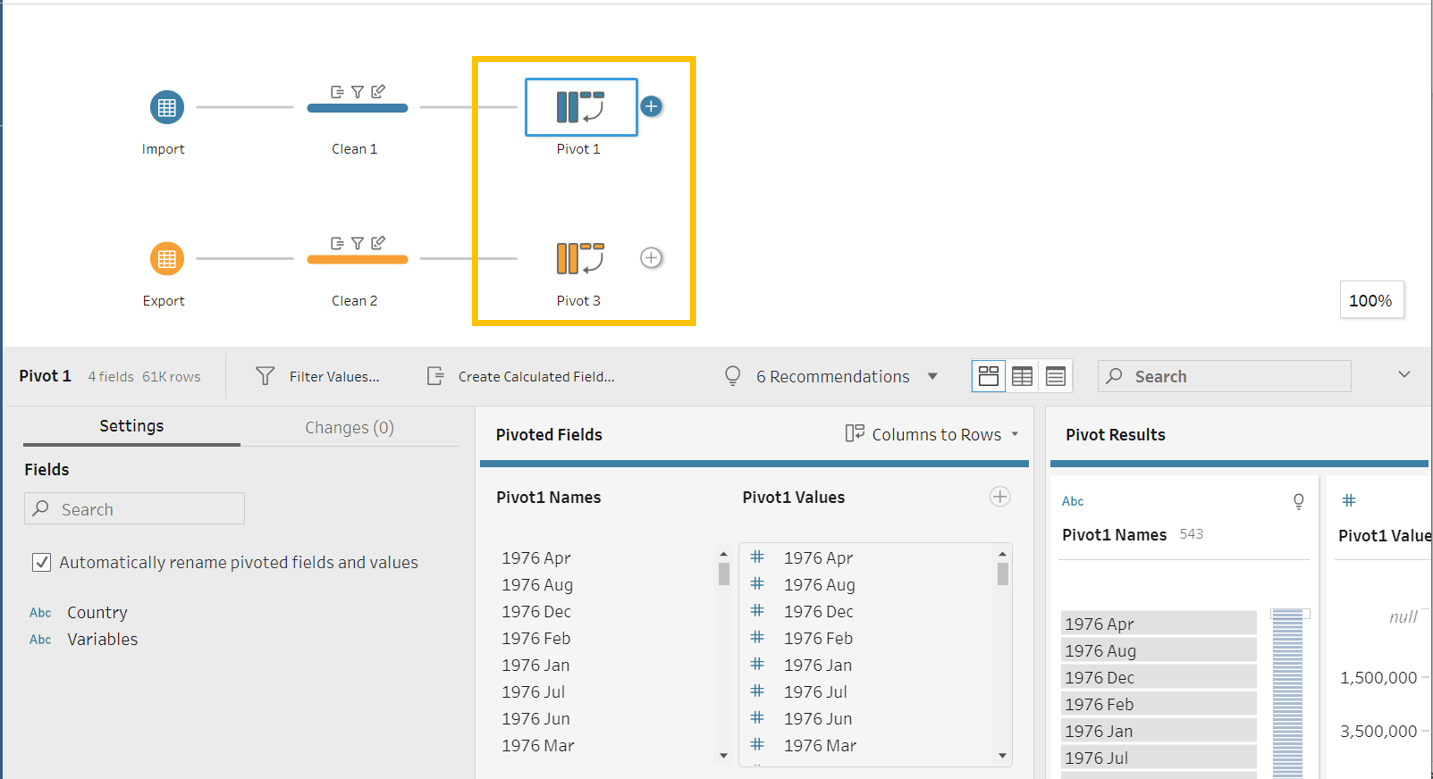

5 Add Pivot nodes after ‘Clean 1’ and ‘Clean 2’. Under ‘Pivot 1’, select all months under ‘Fields’ to the ‘Pivoted Fields’ panel. Repeat for ‘Pivot 2’.

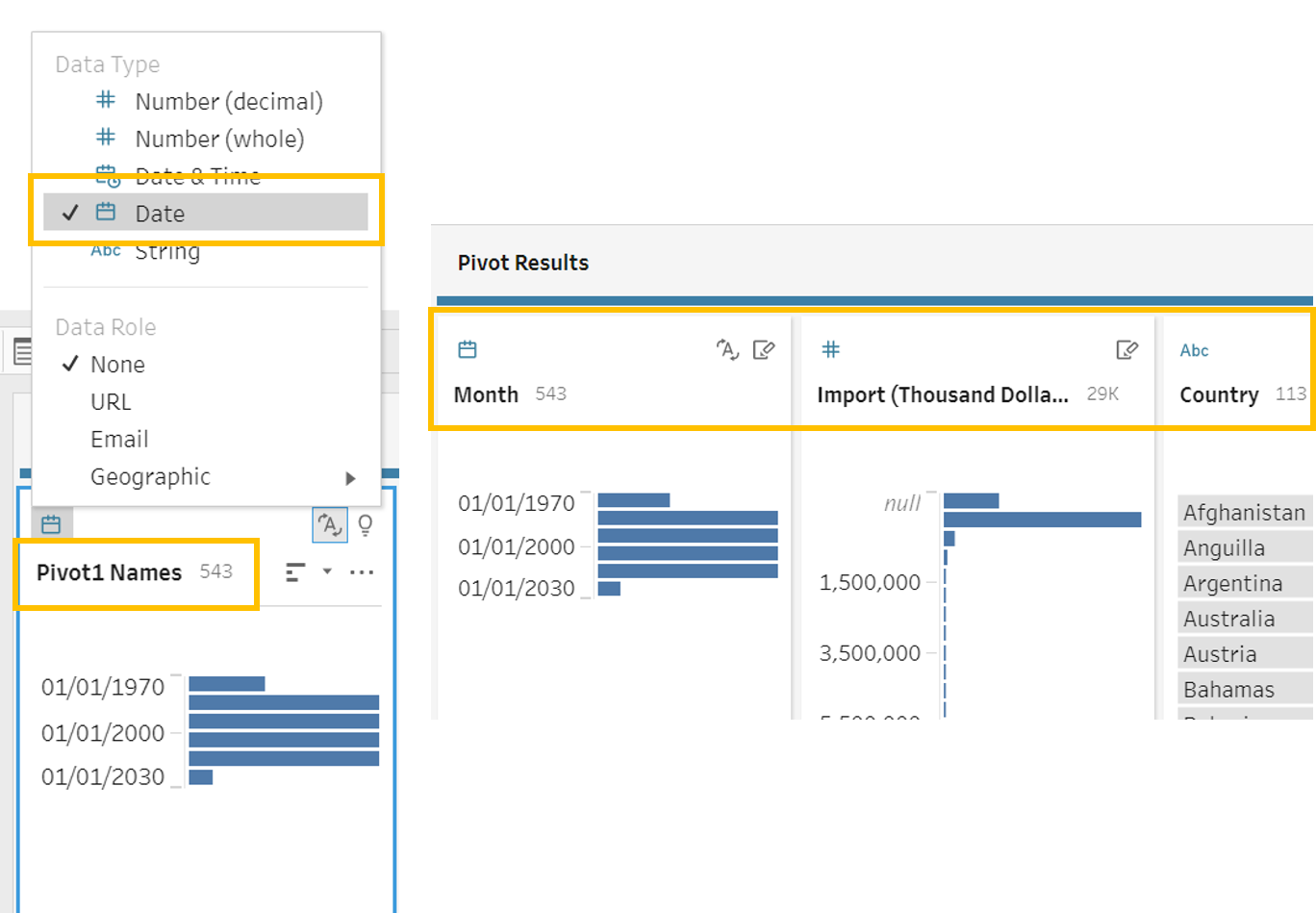

6 Under ‘Pivot 1’, rename ‘Pivot1 Names’ to ‘Month’ and change data type to ‘Date’. Rename ‘Pivot1 Values’ to ‘Import (Thousand Dollars)’. Remove ‘Variables’. Repeat for ‘Pivot 2’ but rename ‘Pivot1 Values’ to ‘Export (Thousand Dollars)’.

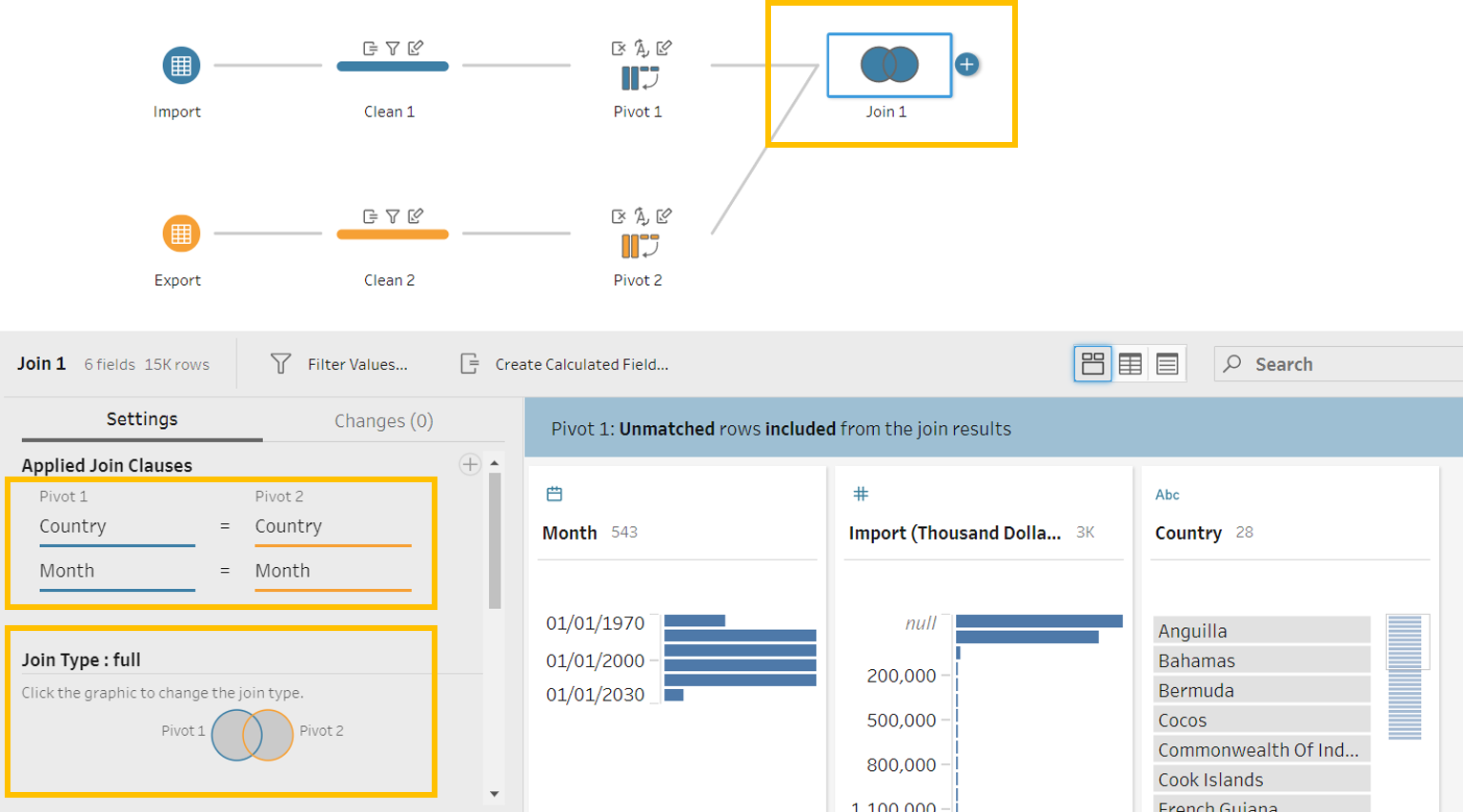

7 Do a full join between ‘Pivot 1’ and ‘Pivot 2’ with ‘Country’ and ‘Month’ as the join clauses.

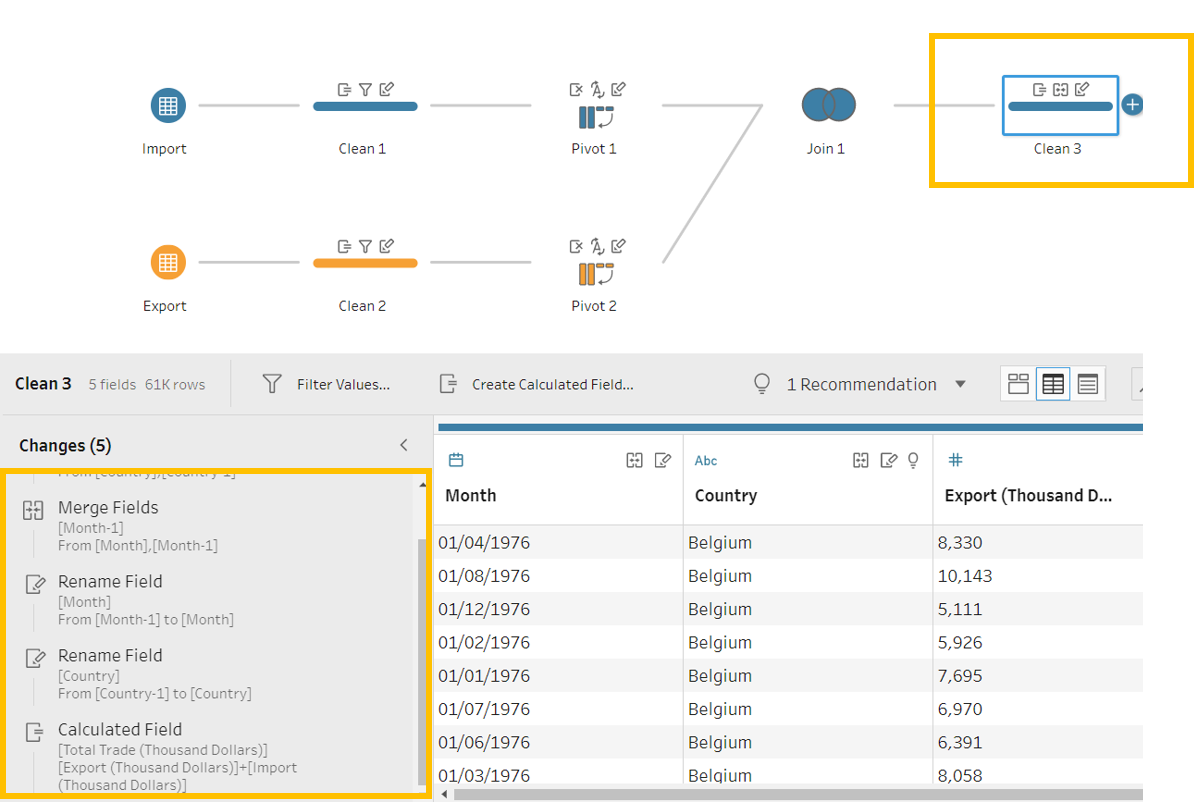

8 Create a ‘Clean’ node after ‘Join 1’ to merge duplicated country and month variables.

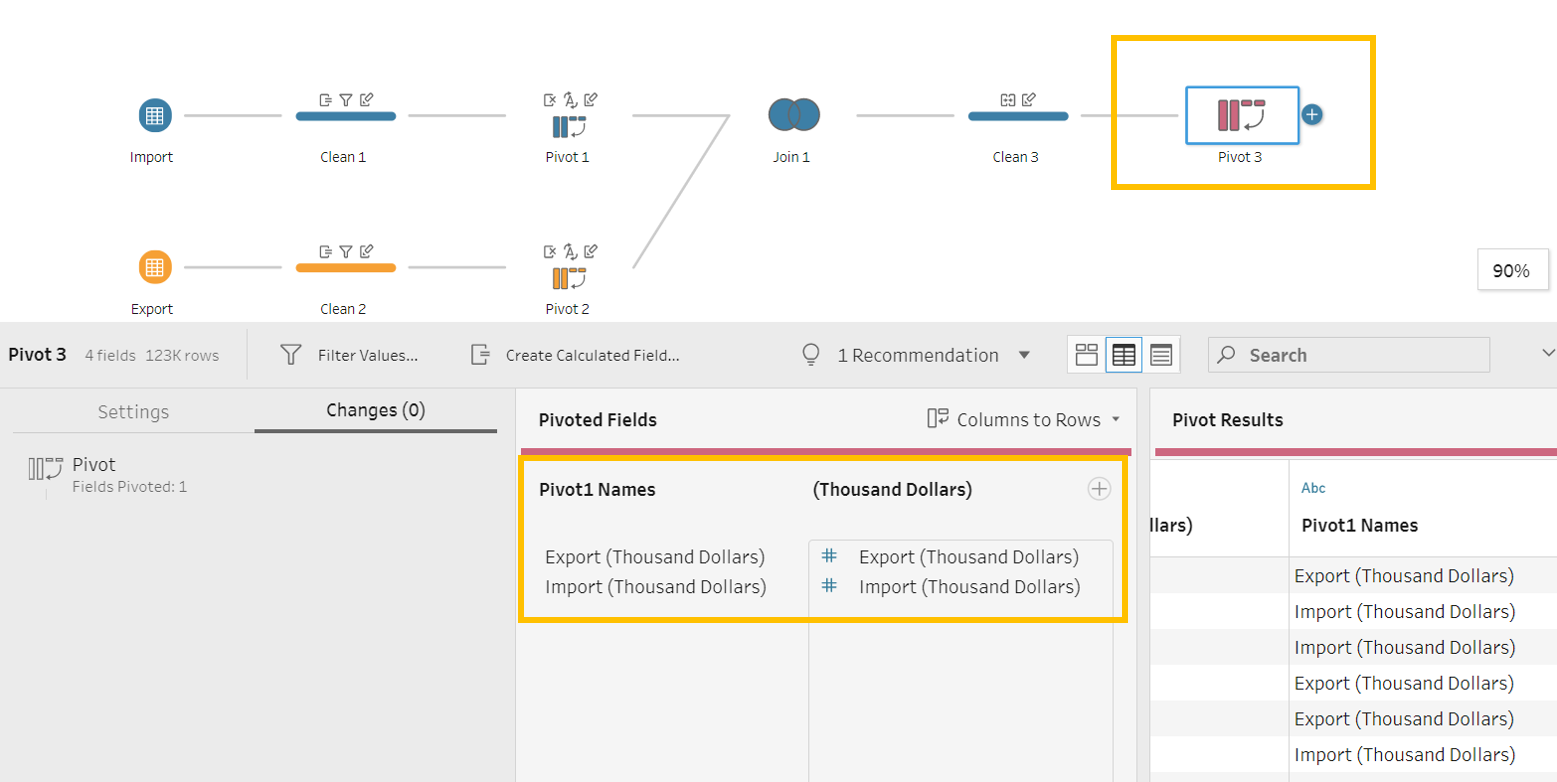

9 Create a ‘Pivot’ node after ‘Clean 3’ and change ‘Export (Thousand Dollars)’ and ‘Import (Thousand Dollars)’ from columns to rows.

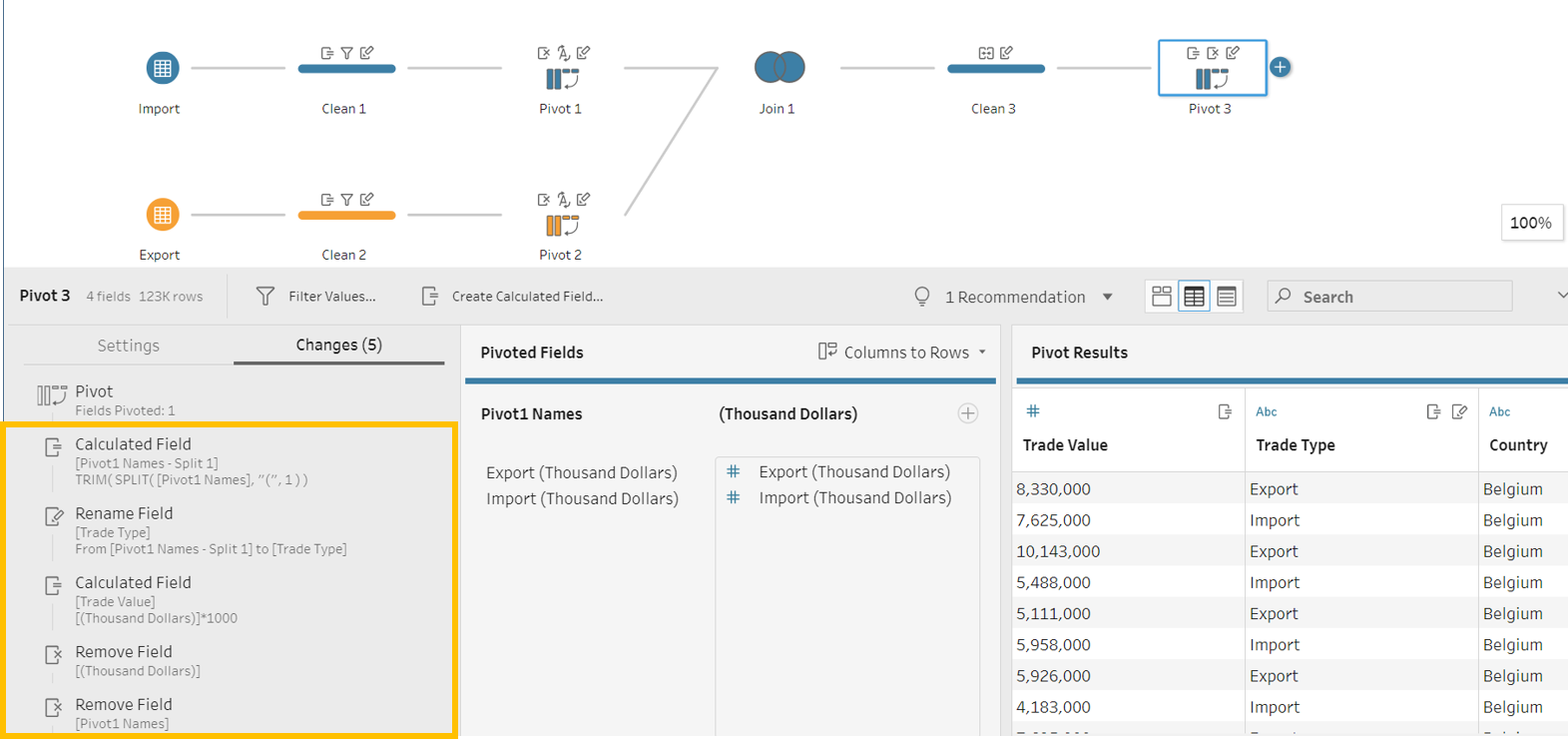

10 Split ‘Pivot1 Names’ and rename the field of ‘Split 1’ to ‘Trade Type’. Multiply ‘(Thousand Dollars)’ by 1000 and rename it ‘Trade Value’. Remove the unnecessary fields ‘(Thousand Dollars)’ and ‘Pivot1 Names’.

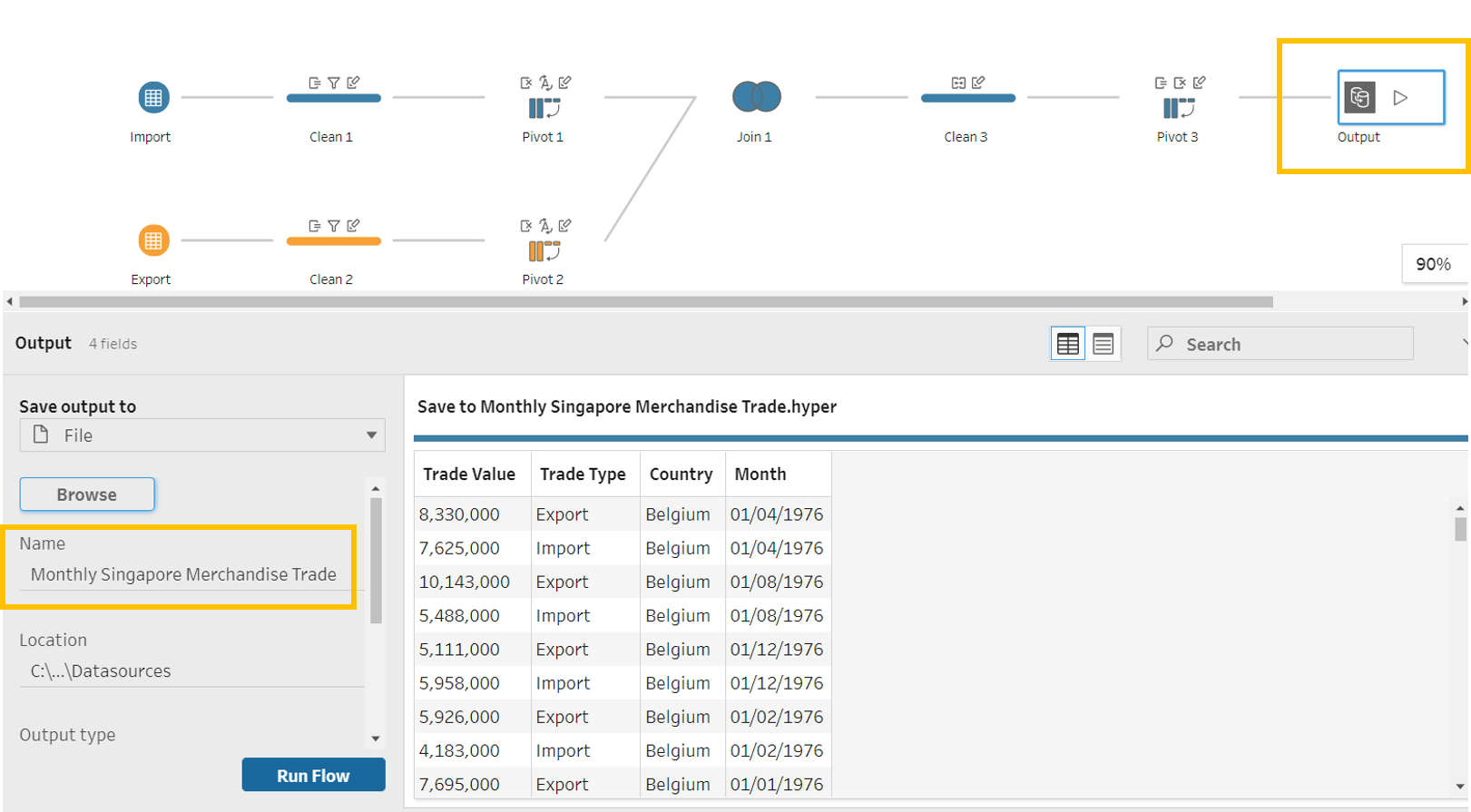

11 Create a ‘Output’ node after ‘Pivot 3’ node and save output as ‘Monthly Singapore Merchandise Trade’.

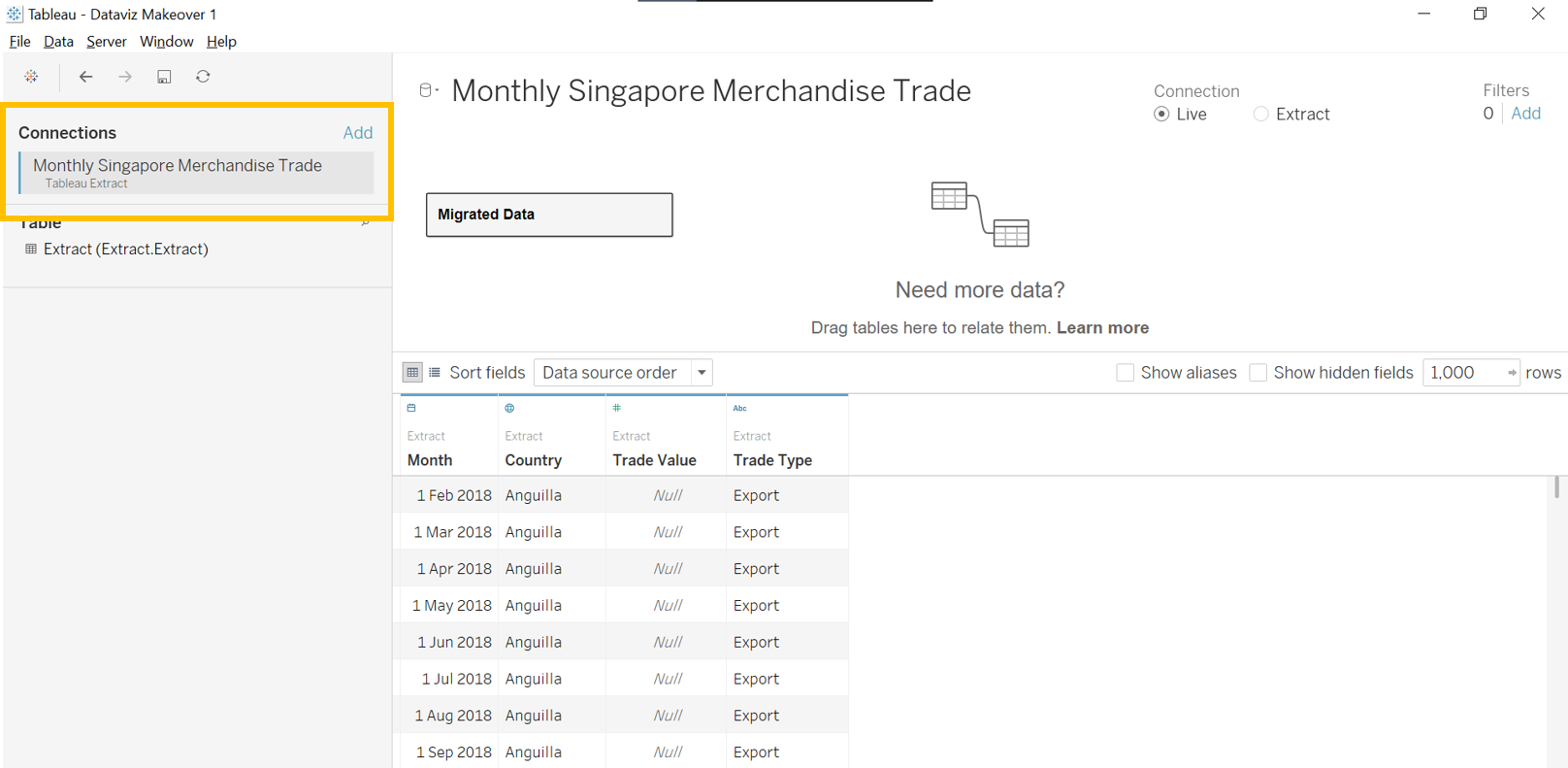

12 Set up a connection on Tableau Desktop to the ‘Monthly Singapore Merchandise Trade’ hyper’s extract.

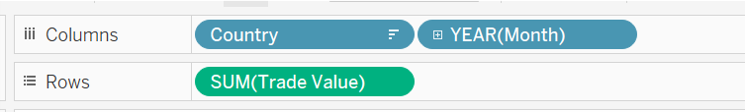

13 For Chart 1, create a new worksheet and name it “Annual Trade’. Drag ‘Country’ and ‘Month’ to ‘Columns’ and ‘Trade Value’ to ‘Rows’ shelves.

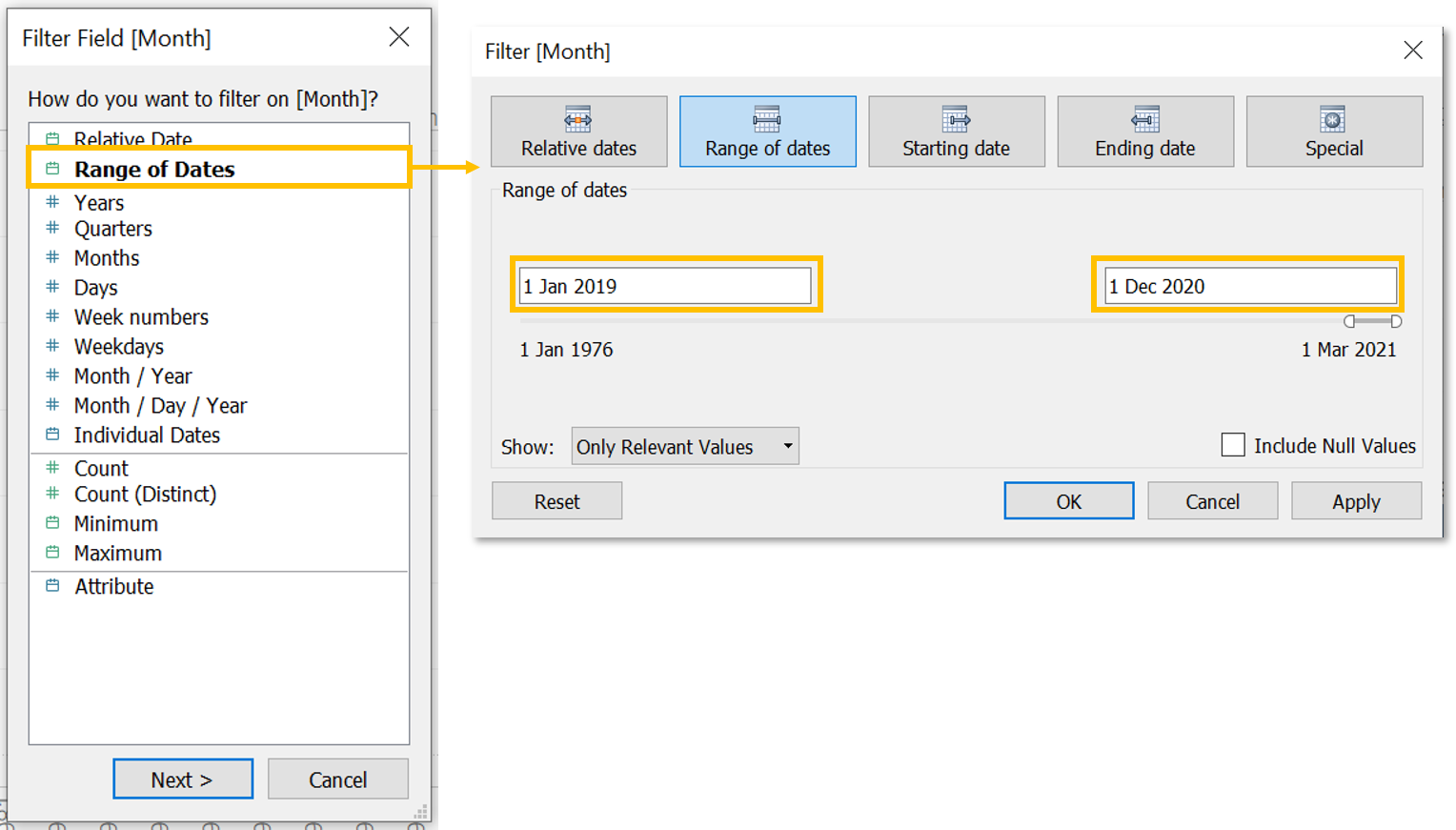

14 Drag ‘Month’ to the ‘Filter Field’ section. Select ‘Range of Dates’ and indicate ‘1 Jan 2019’ as the start and ‘1 Dec 2020’ as the end.

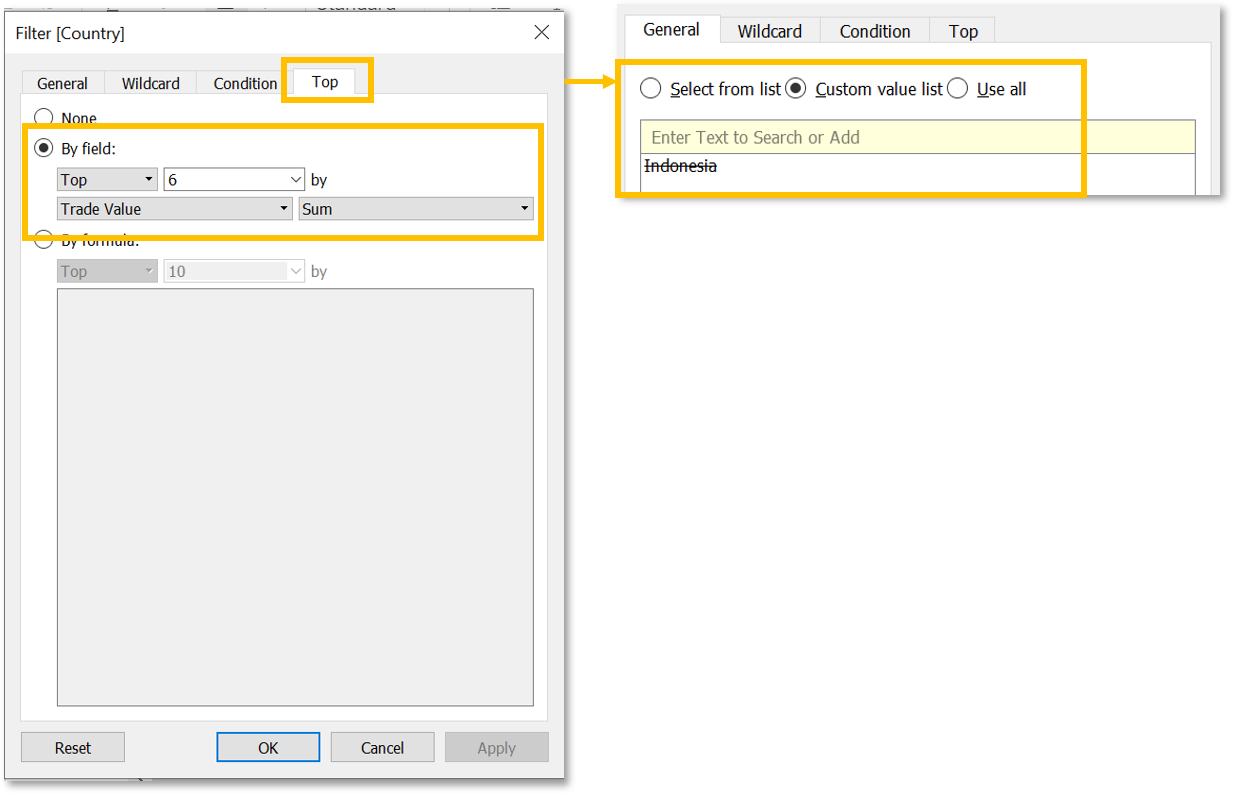

15 Drag ‘Country’ to the ‘Filter Field’ section. Select the ‘Top’ tab and choose the top 6 by sum of ‘Trade Value’. Then exclude ‘Indonesia’ from the custom value list.

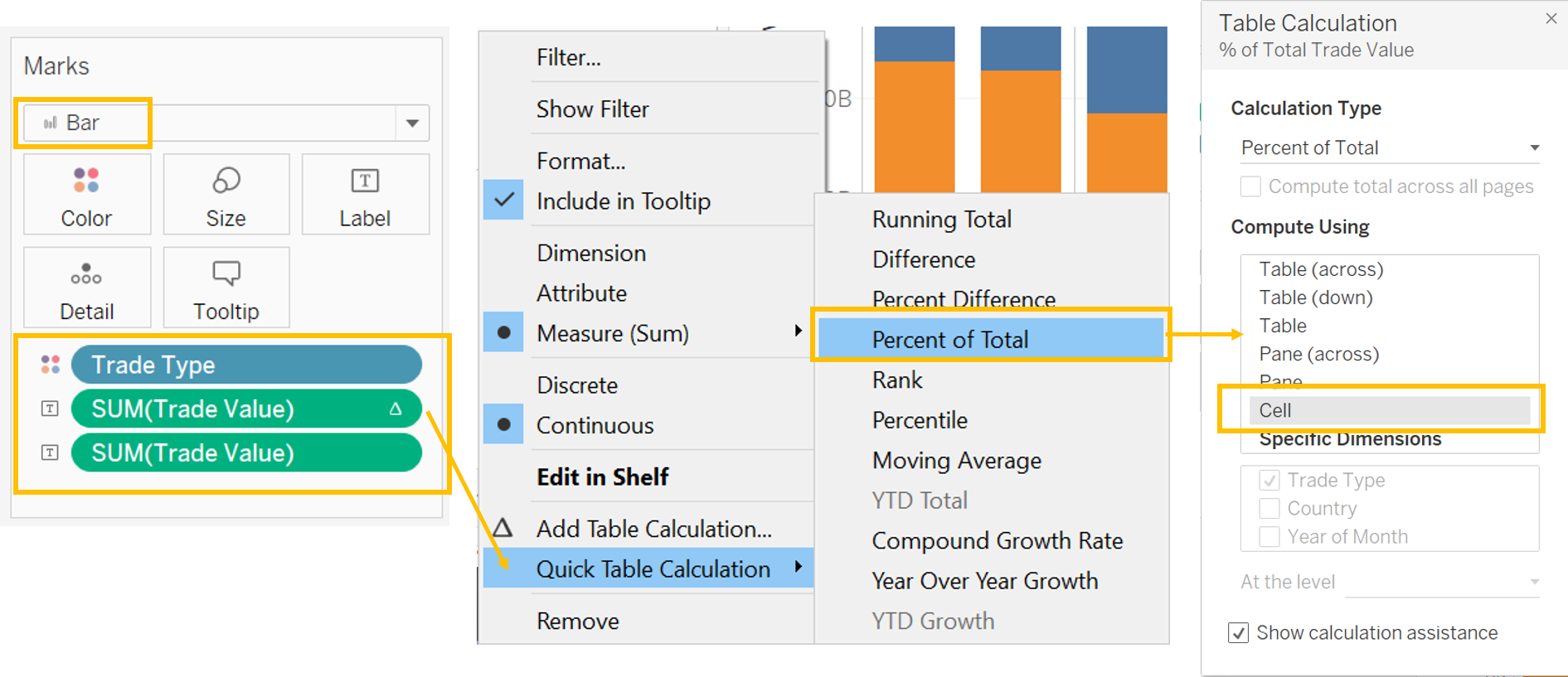

16 Under ‘Marks’, select ‘Bar’ under the dropdown and drag ‘Trade Type’ to ‘Color’. Drag ‘Trade Value’ to ‘Label’ and add ‘Quick Table Calculation’ to add the ‘Percent of Total’ computed using ‘Cell’. Then drag ‘Trade Value’ to label again.

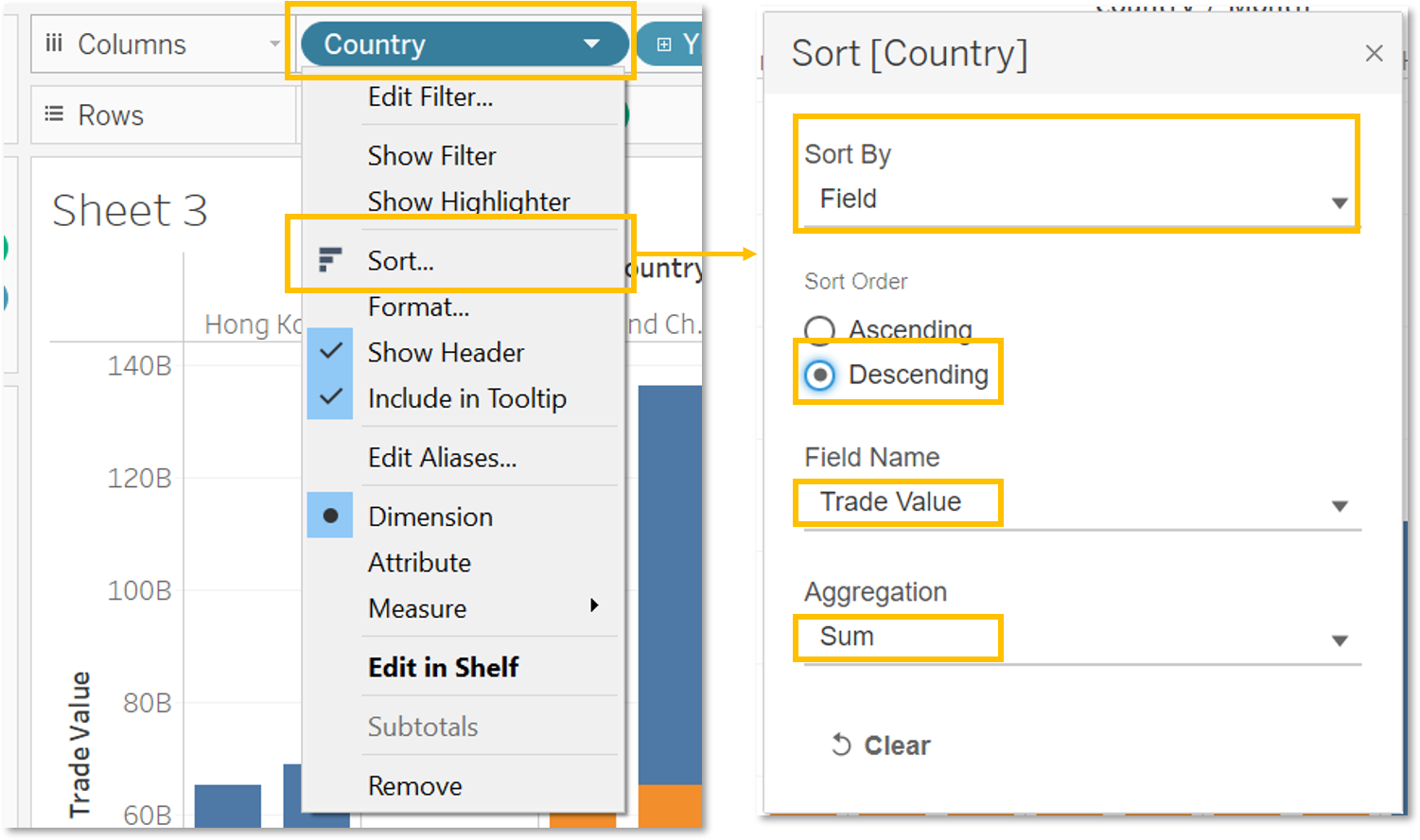

17 Sort ‘Country’ based on descending sum of ‘Trade Value’.

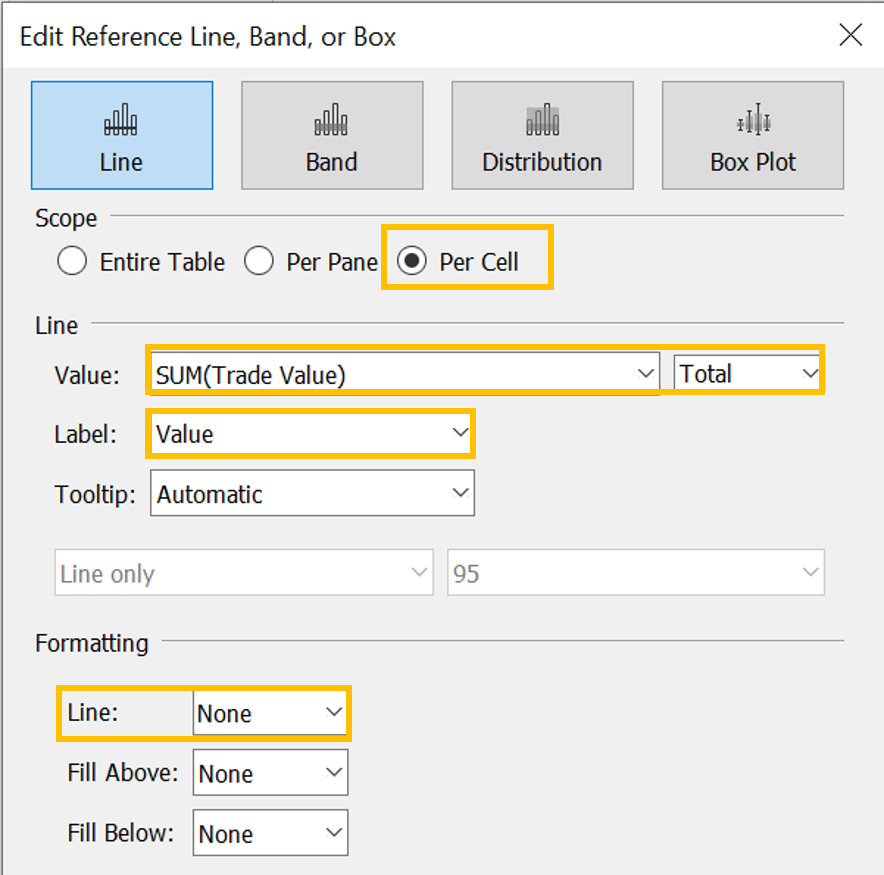

18 Click on the X-axis and add a reference line using the value of ‘SUM(Trade Value)’ at ‘Per Cell’ level. Remove the line.

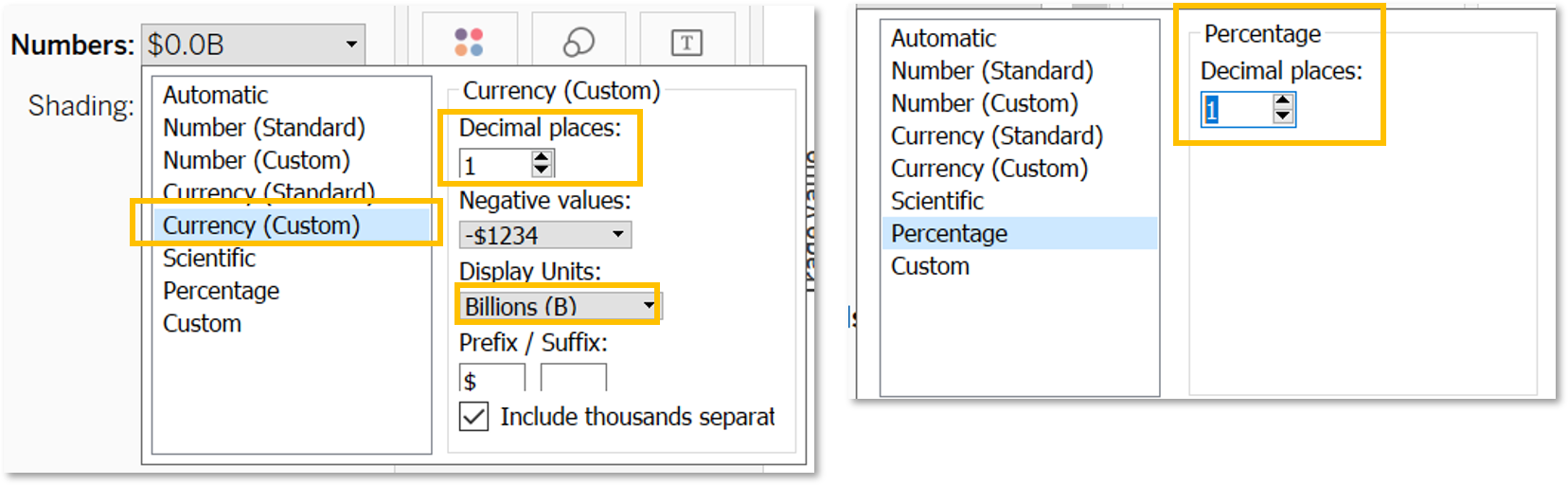

19 Format the trade values shown using ‘Currency (Custom)’ with ‘Billions (B)’ as display unit at 1 decimal place. And format the percentage from total value to 1 decimal place.

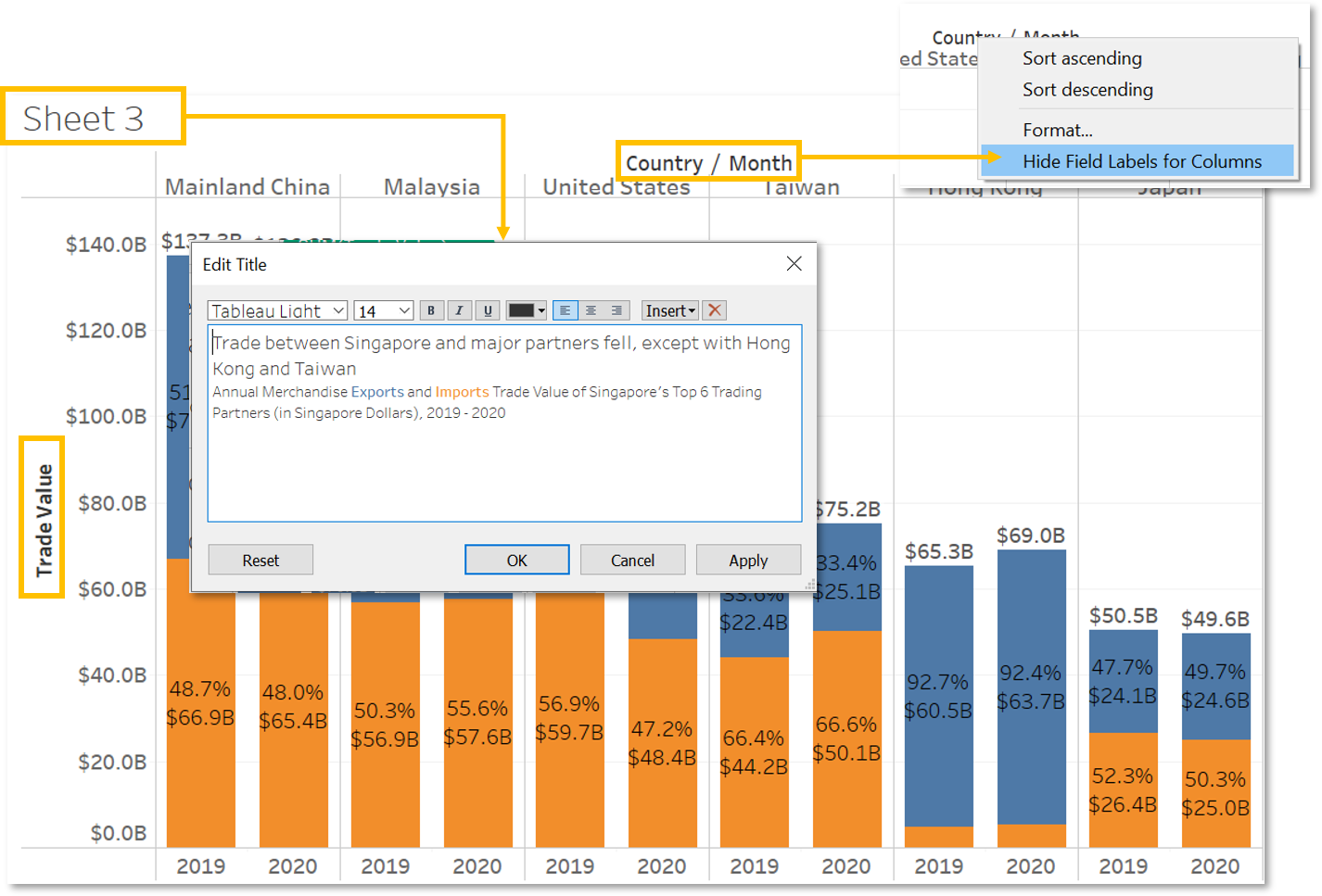

20 Update the title to include a main active title and functional subtitle, colouring ‘Exports’ and ‘Imports’ aligning with the legend. Hide ‘Country / Month’. Add ‘(Billions)’ to ‘Trade Value’ label on the X-axis.

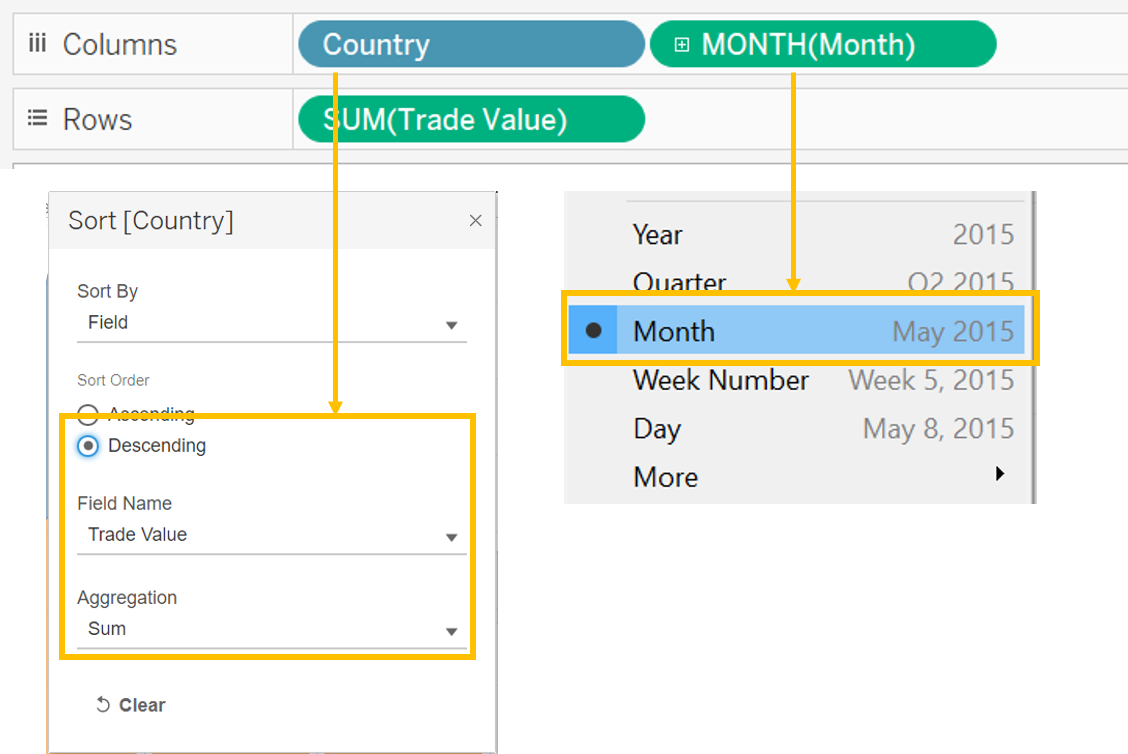

21 For Chart 2, create a new worksheet and name it “Monthly Trade’. Drag ‘Country’ and ‘Month’ to ‘Columns’ and ‘Trade Value’ to ‘Rows’ shelves. Sort ‘Country’ by descending sum of ‘Trade Value’ and change ‘Month’ to month with year format. Repeat Step 14 to set up the date and country filters.

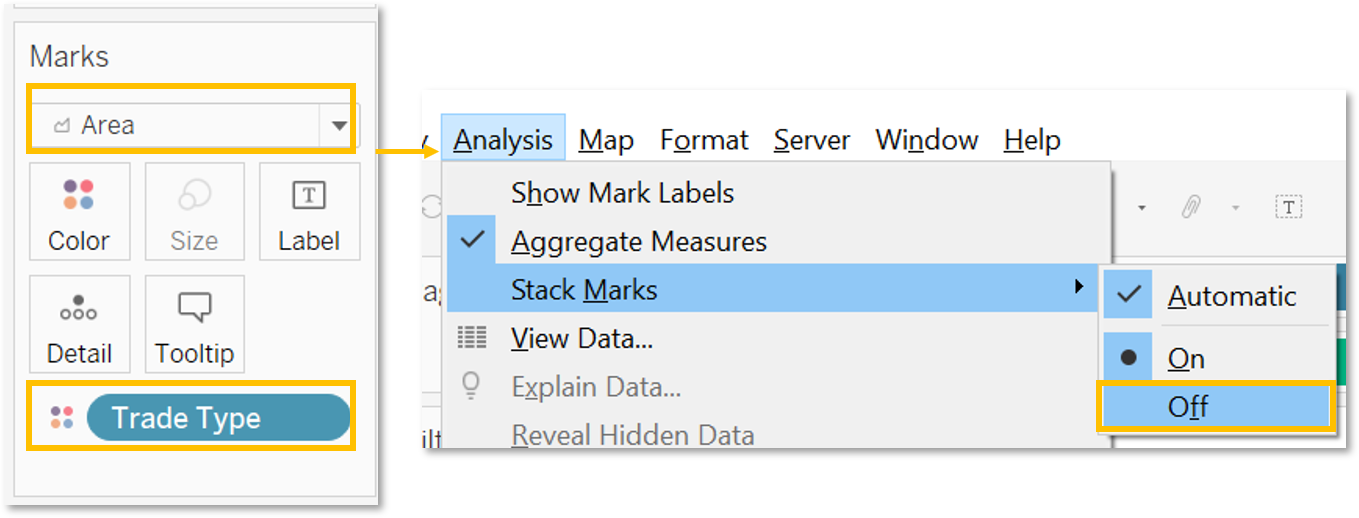

22 Select ‘Area’ chart under ‘Marks’ and drag ‘Trade Type’ to ‘Color’. Then select ‘Analysis’ and switch ‘Stack Marks’ to ‘Off’.

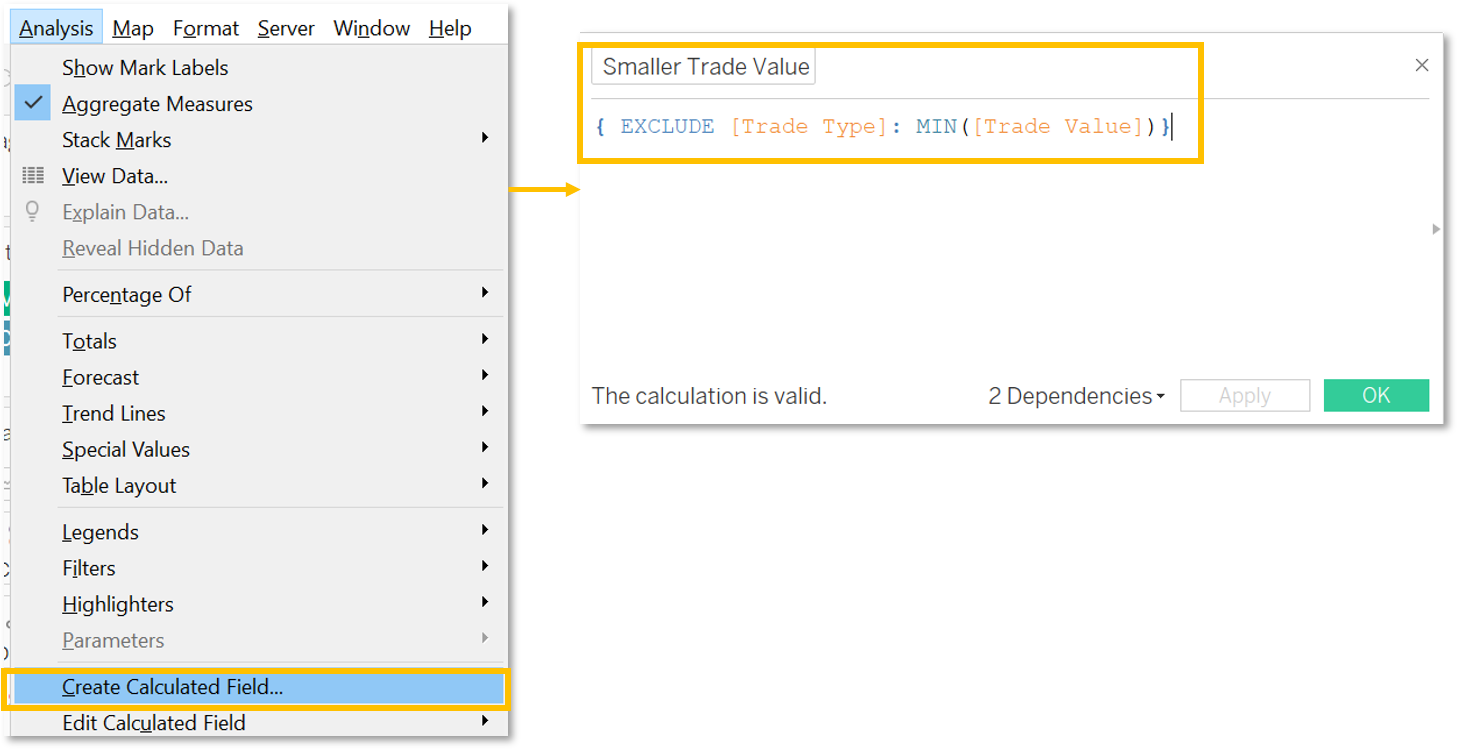

23 Under ‘Analysis’, select ‘Create Calculated Field’ to create a new variable called ‘Smaller Trade Value’ to select the minimum ‘Trade Value’ irrespective of ‘Trade Type’ based on each time period.

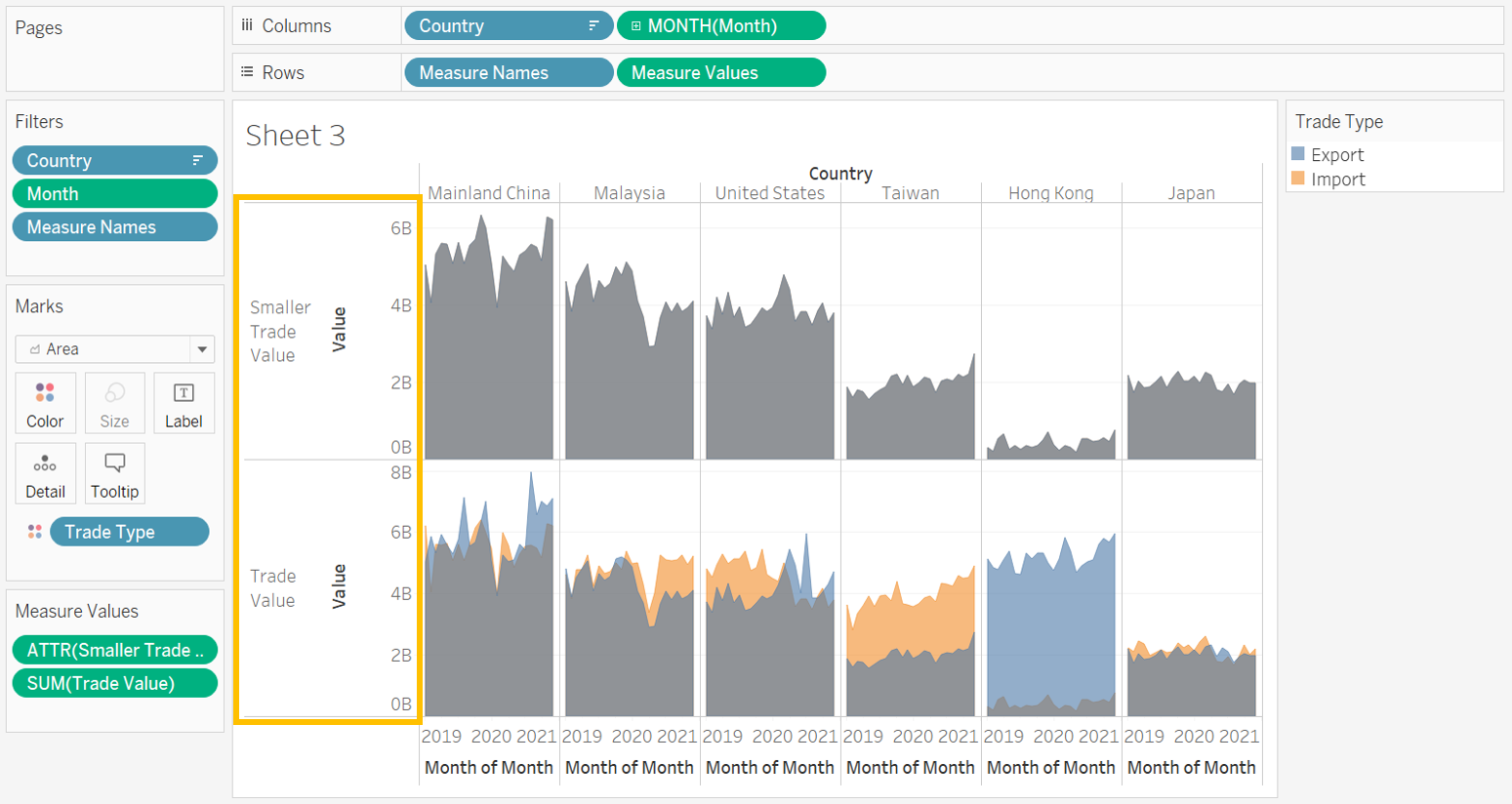

24 Drag ‘Smaller Trade Value’ variable onto the ‘Trade Value’ axis to create a ‘combined axis’.

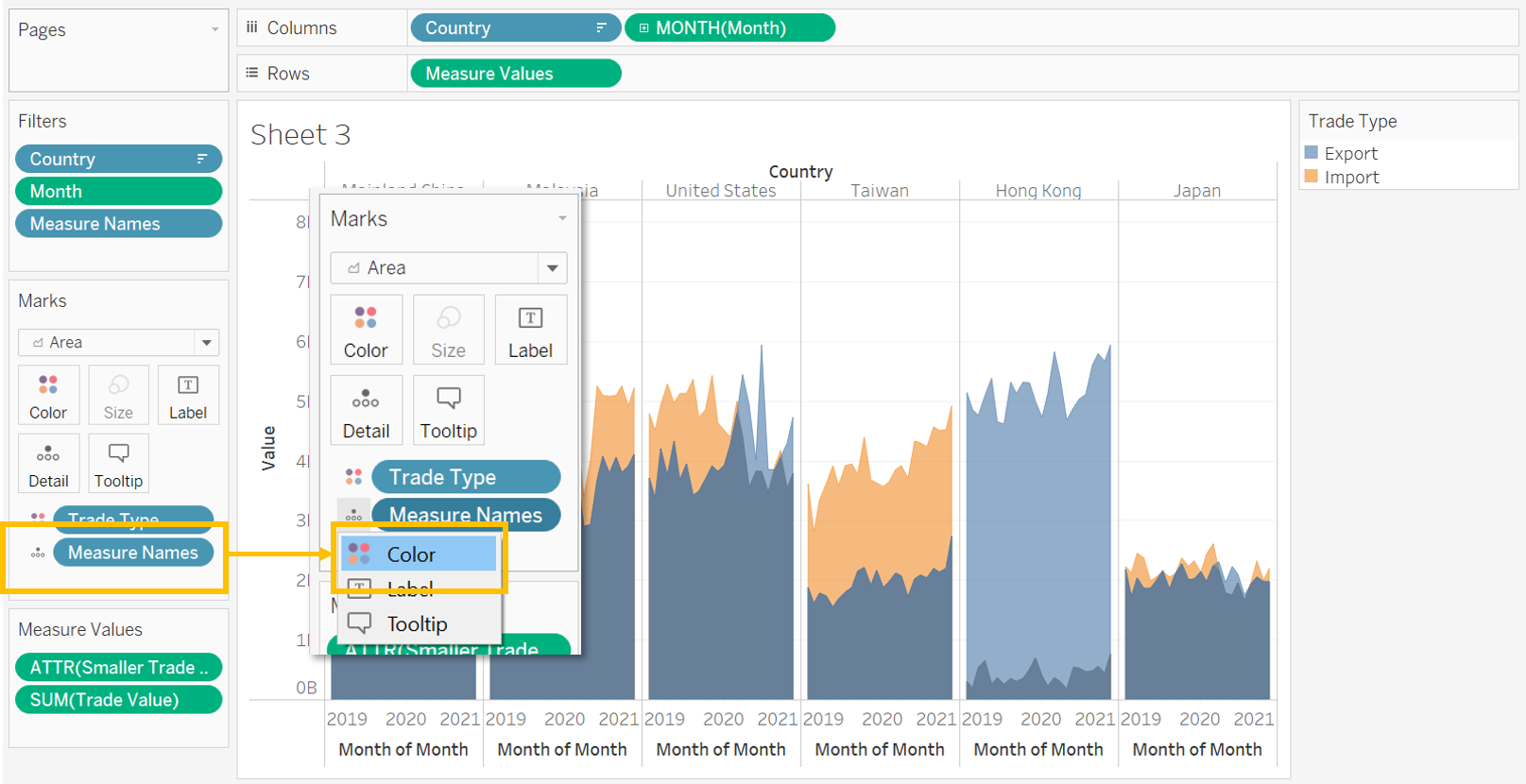

25 Drag ‘Measure Names’ from ‘Rows’ shelf to ‘Detail’ under ‘Marks’. Then click on the ‘Detail’ icon next to ‘Measure Names’ and change it to ‘Color’.

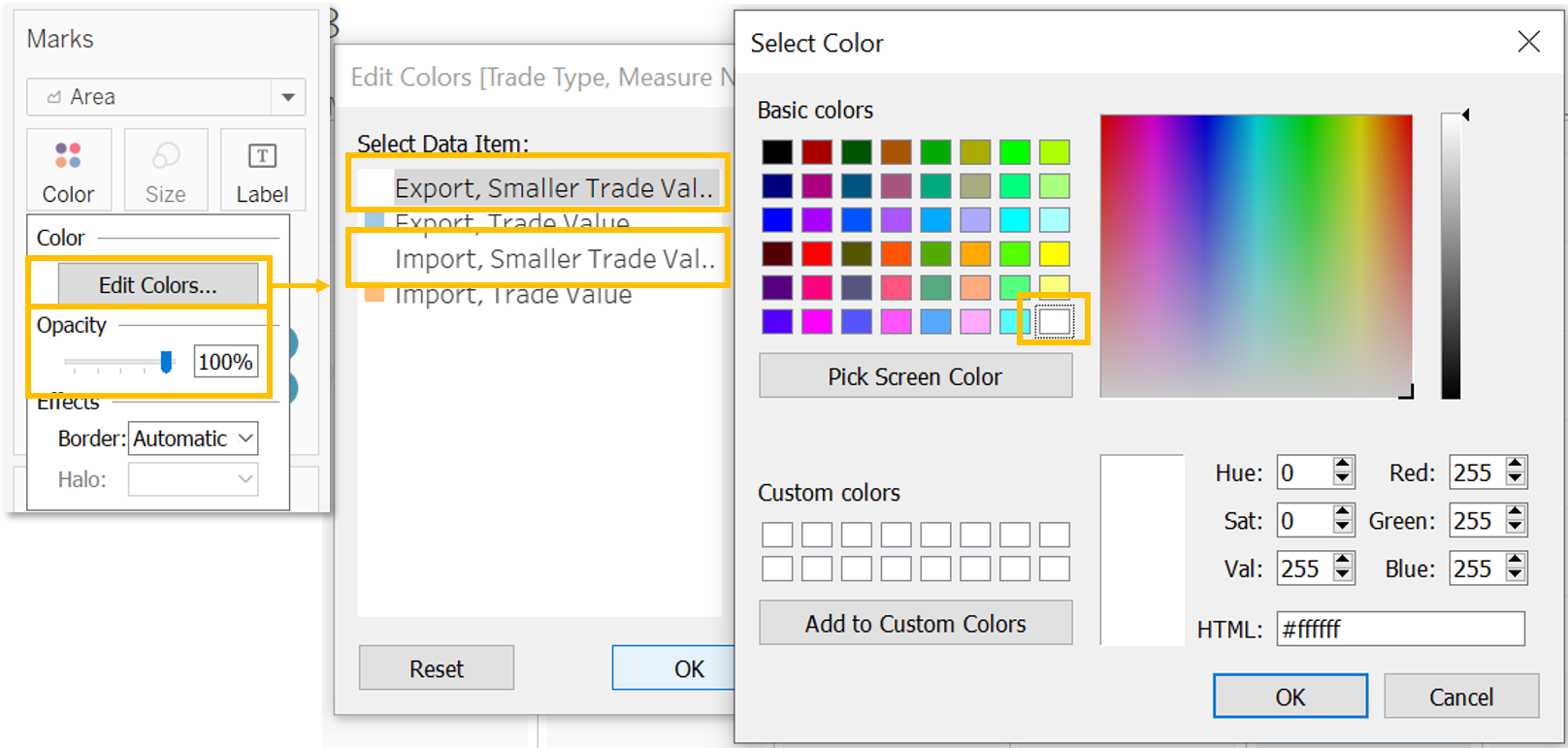

26 Click on ‘Colors’ under ‘Marks’ and edit the colours of the variables with ‘Smaller Trade Value’ to white. Change opacity to 100%.

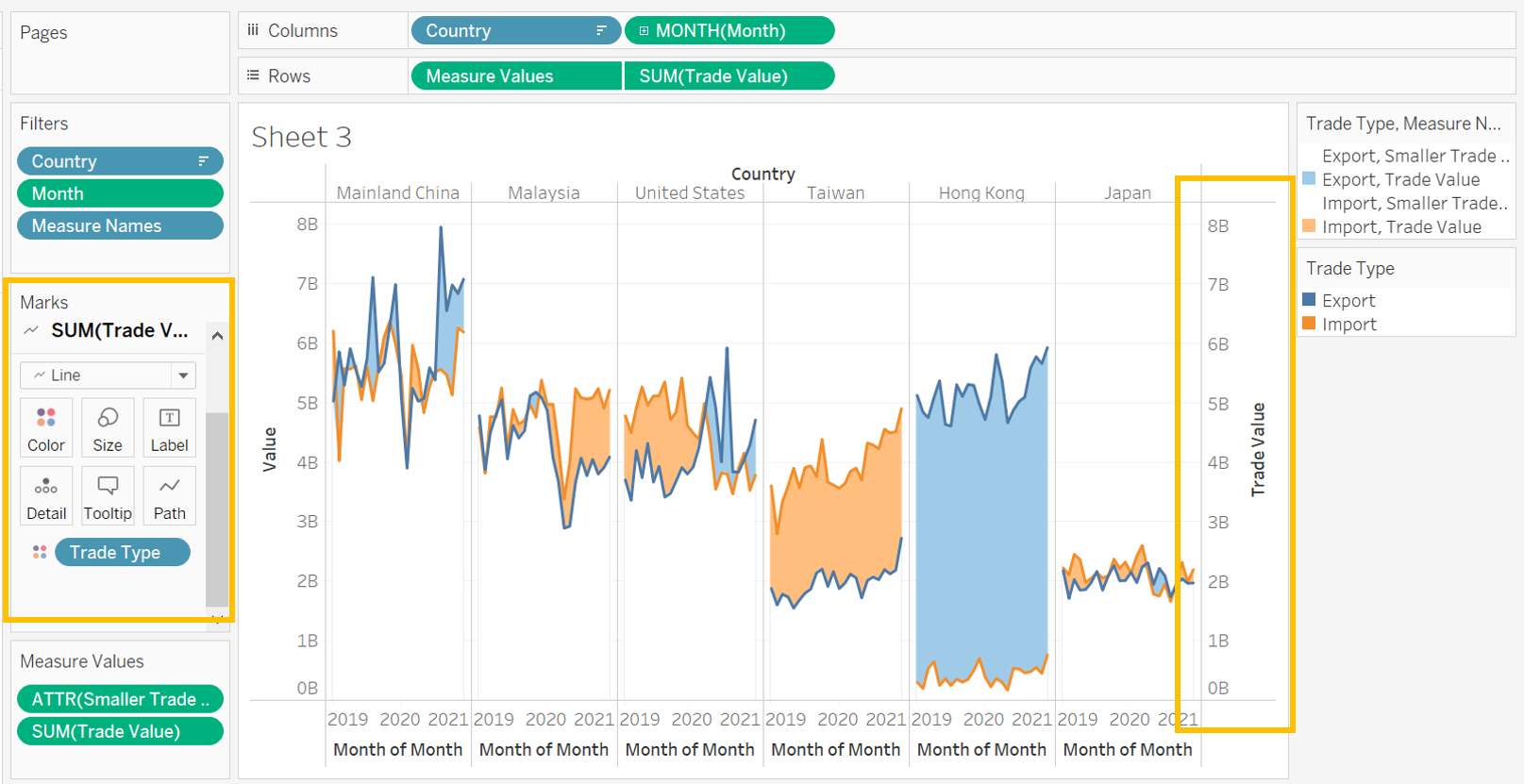

27 Drag ‘Trade Value’ to the secondary axis on the chart. There will be a new section appearing under ‘Marks’. Change the chart type to ‘Line’ under the dropdown and remove ‘Measure Names’.

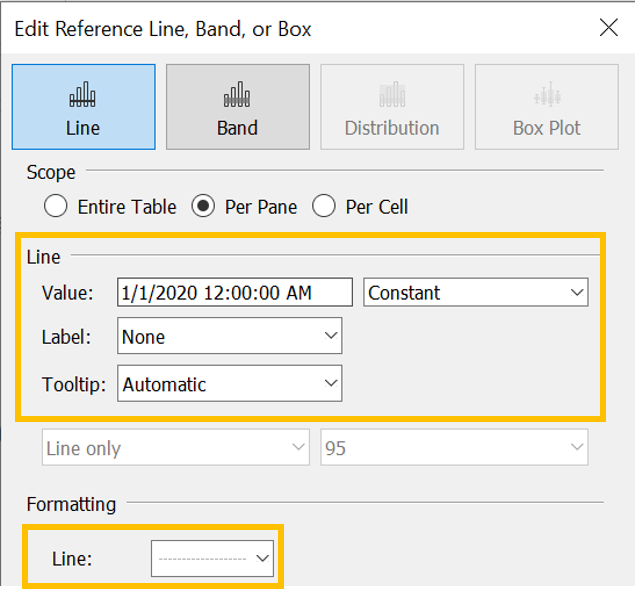

28 Click on the X-axis and add a reference line using a constant value indicating 1 Jan 2020. Remove the label and reduce the thickness of the dotted line.

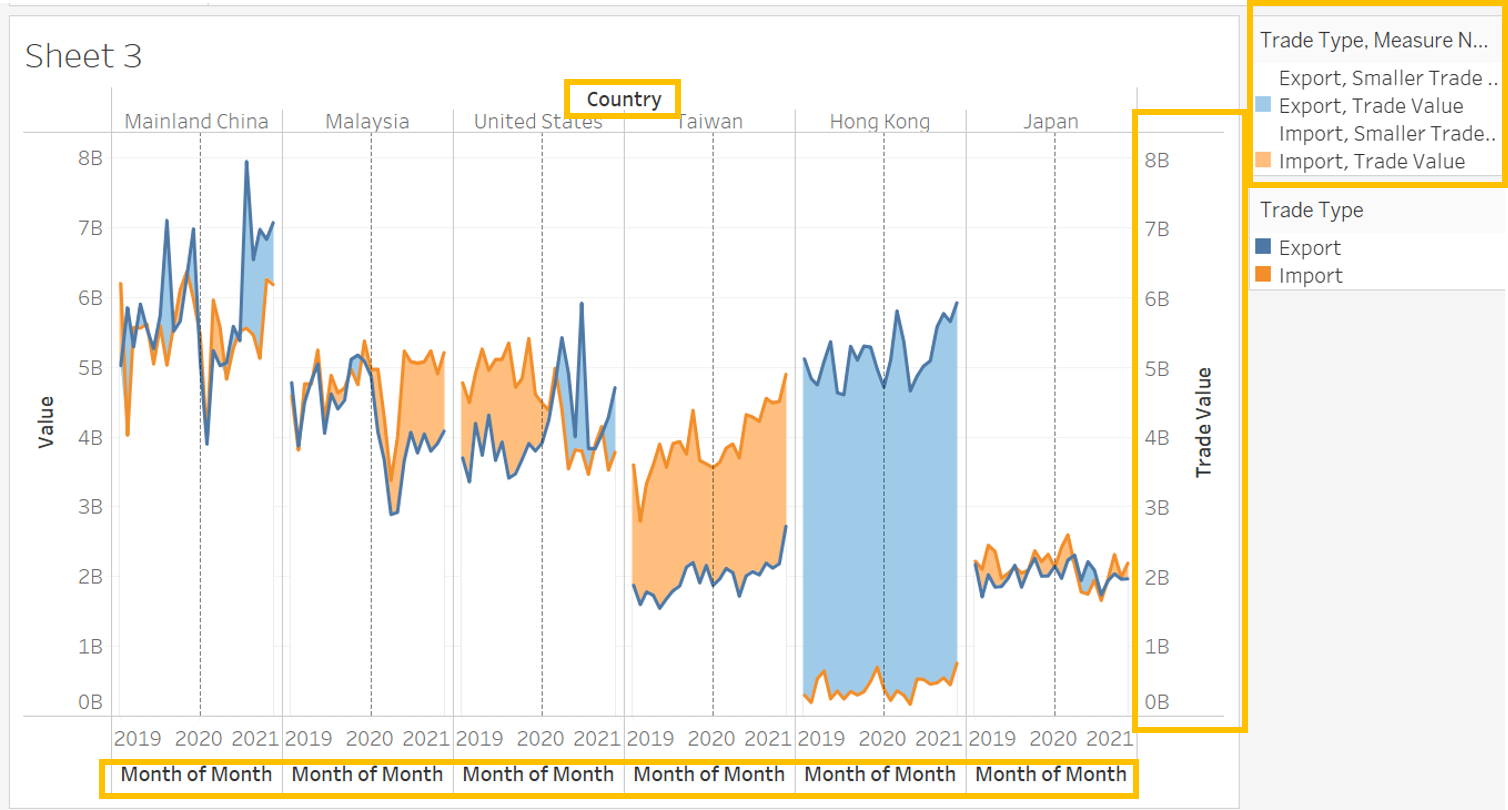

29 Remove the secondary axis, the legend for the area chart, the X-axis label and hide field labels for columns.

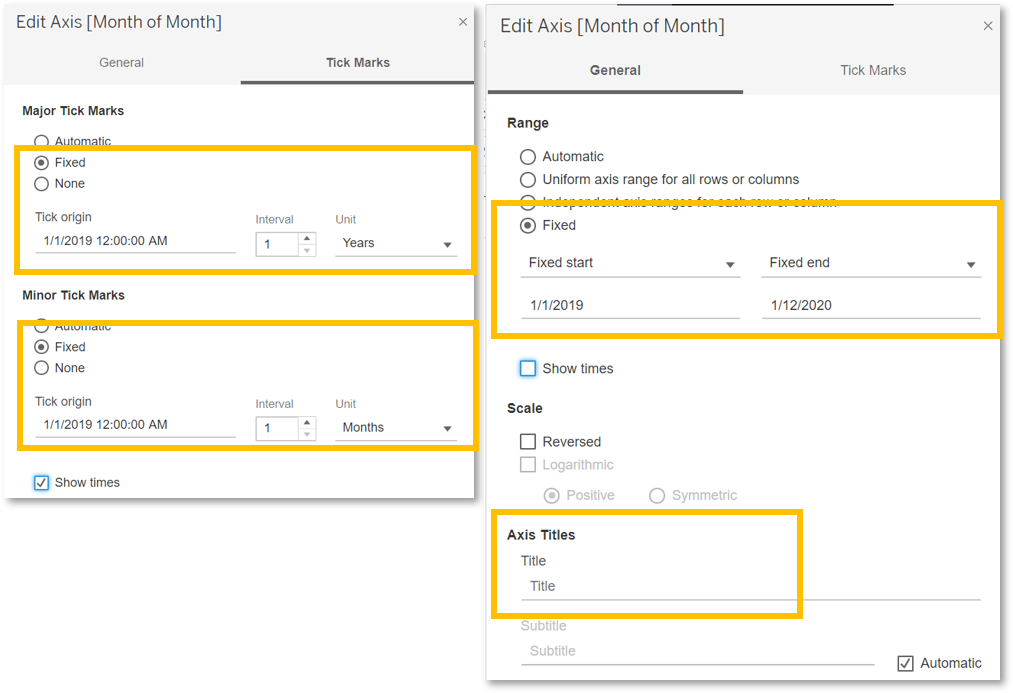

30 Edit the X-axis to start on 1/1/2019 and end after 1/12/2020. Fix minor tick marks to start of the month and major tick marks to start of the year. Remove the axis titles.

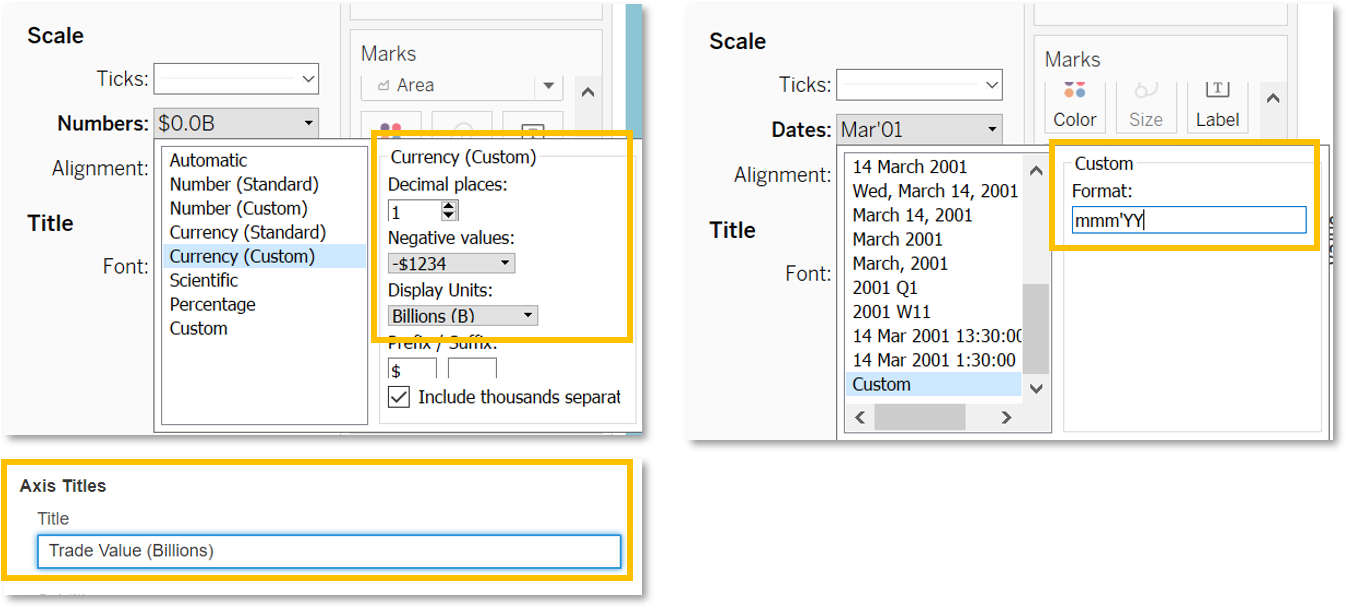

31 Edit the Y-axis scale to show currency in billions with 1 decimal place. Change the Axis Title to ‘Trade Value (Billions)’. Edit X-axis value format to show both month and year.
32 Bold the country values, Y-axis and X-axis values. Change the country values font size to 10. Add a title and subtitle to the chart.

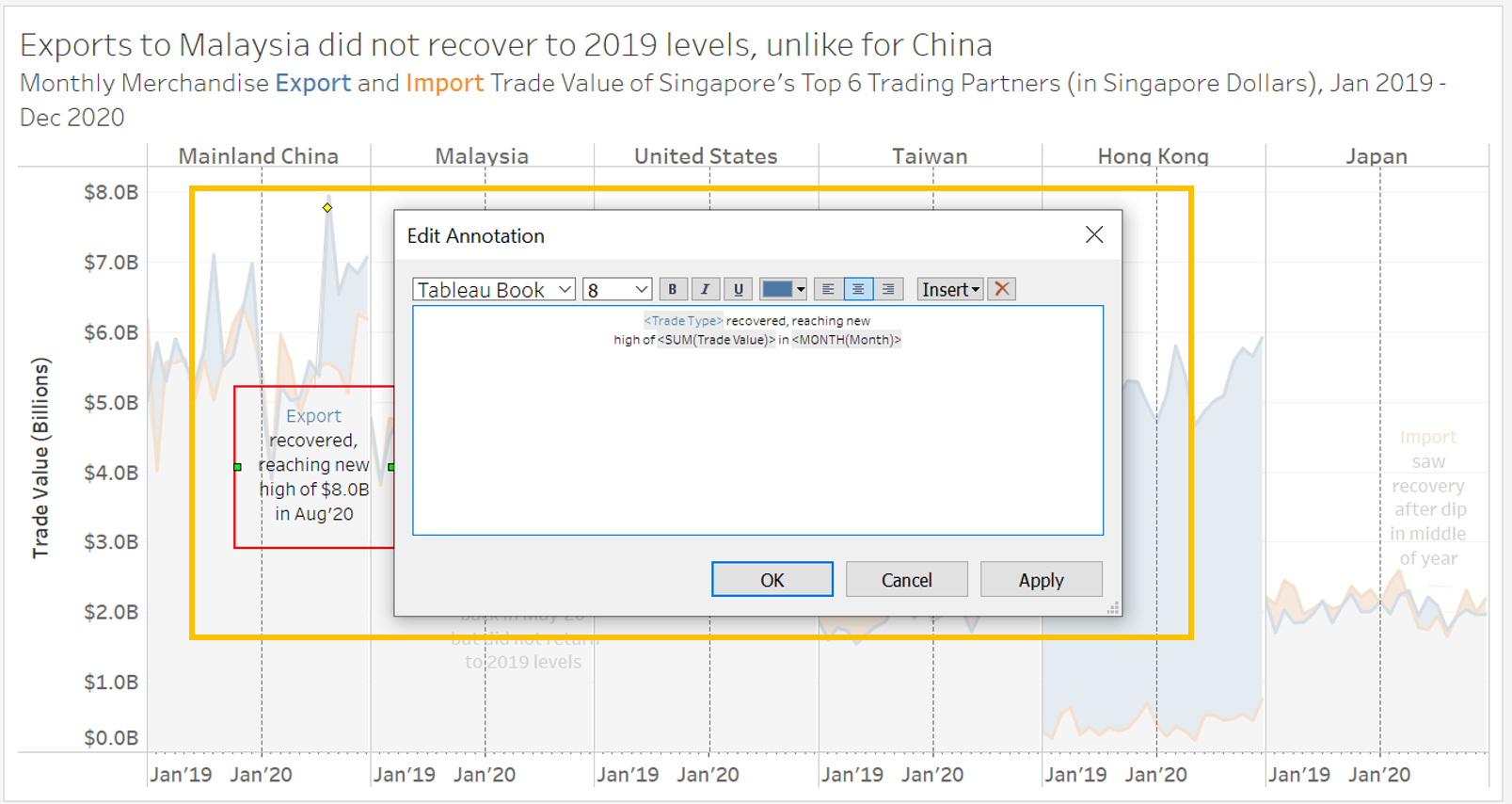

33 Add annotation to points whereby there are interesting trends.

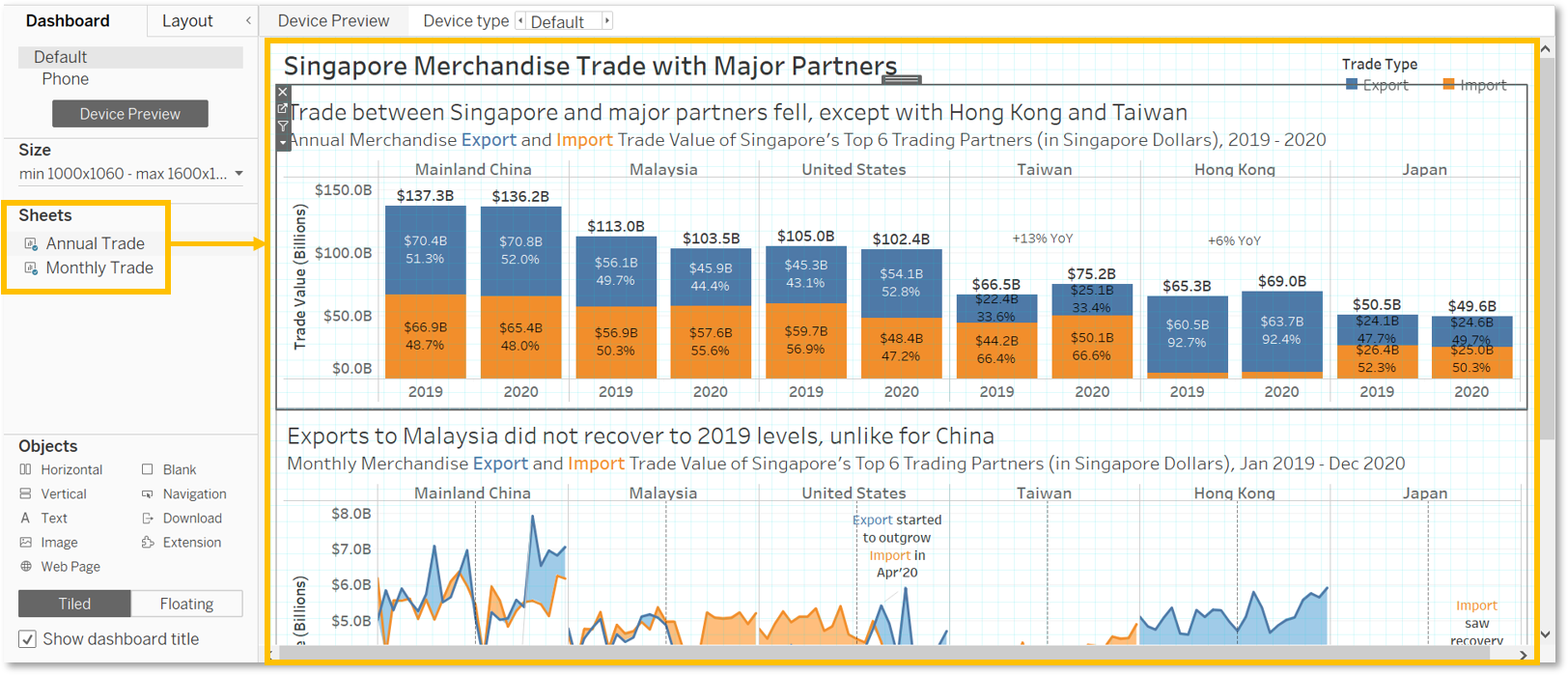

34 Create a ‘Dashboard’. Drag ‘Annual Trade’ sheet to the top and ‘Monthly Trade’ sheet to the bottom. Add a dashboard title to indicate the context of the visualisation. At the bottom of the charts, add a footnote to indicate notes for Chart 2 and the data source.

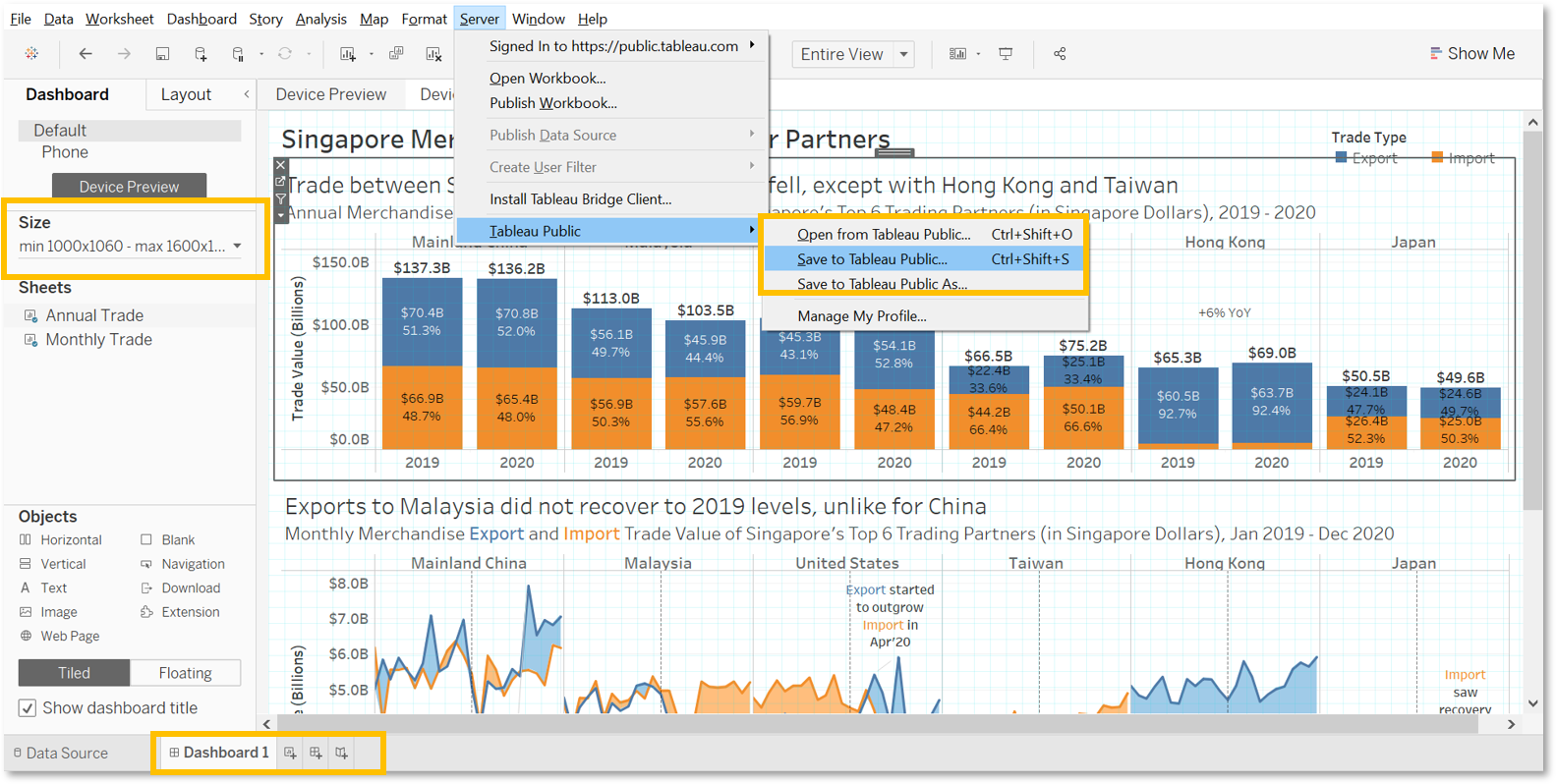

35 Hide the worksheets and publish the dashboard to Tableau Public. Tweak the size of the dashboard to ensure that the visualisation can be view properly.

5. Major Observations

  1. Annual Trade: Annual merchandise trade value between Singapore and major partners fell in 2020, except for Taiwan and Hong Kong which grew 13% and 6% year-on-year. The dip year-on-year is the greatest for Malaysia, registering a $9.5B decline driven mainly by lower exports. The next biggest dip came from United States, which registered $2.6B year-on-year decline, which instead is driven by lower imports.
  2. Mainland China: The monthly trends showed that the trade decline with Mainland China in 2020 was due to a sharp dip in Feb’20 for both export and import trade. This coincided with the COVID-19 lock down in Mainland China which started in end Jan’20. Trade between Singapore and Mainland China bounced back in Mar’20. Export to China continued to grow and reached a new high at $8.0B in Aug’20 before hovering at $7.0B per month thereafter.
  3. Malaysia: Trade to Malaysia for both export and import saw a sharp dip in Apr’20. This coincided with the start of Singapore’s Circuit Breaker period. Import started to recover in May’20 and hovered around $5.0B/month in later half of 2020. Export only recovered in Jun’20, when Singapore entered Phase 1. However, export to Malayisa hovered around $4.0B/month in later half of 2020, failing to recover to 2019 levels. Based on Enterprise Singapore’s media release, lower exports to Malaysia was partially due to lower oil domestic exports.
  4. United Stated: Export to United States started to outgrow import in Apr’20 and persisted through most of 2020. This is due to both higher export and lower import. Export to United States remained volatile, seeing large swings across 2020. According to Enterprise Singapore, NODX export to US in Apr’20 was led by non-monetary gold, food preparations and disk media products.
  5. Taiwan and Hong Kong: Taiwan continued to be a net import trade partner and Hong Kong a net export trade partner.
  6. Japan: Export to Japan exceeded import briefly starting in Apr’20, mainly due to lower imports. Japan returned to being a net import partner in Sep’20.
